RHT Dominator Pump Panels

Choose the appropriate customized panel for your application

Professionally manufactured, pre-assembled hydronic heating pump panels value-engineered to simplify your radiant heat installation. Customized pump panels save time on the job by reducing on-site work to connecting the supply and return lines to manifolds, basic electrical wiring, and hooking up the make-up water supply.

BlueRidge Company technicians are ready to assist you with a total system design whether it is for one room, whole house, warehouse/workshop, condominium or commercial building. Call us at 866-361-4782 for a quote.

Compatibility: Features:
  • Secondary loop built with ultra efficient Grundfos UPSe ECM circulator pumps
  • Choice of 1" or 1-1/4" primary loop /secondary loop
  • Choice of three sizes of secondary loop supply/return branches which can be mixed and matched
  • Tekmar switching relay with RoomResponseTM signal, priority & power ports sized for your application
  • High efficiency air eliminator
  • Expansion tank
  • Mounted on an aluminum panel with unistrut and HydraZorb cushion clamps
  • Approximate dimensions of a 3 pump panel are 36" wide x 36" high x 13" deep
  • Each additional pump increases the panel width by approximately 6" and a 3-way mixing valve option adds approximately another 12" in width, depending on the number of pumps it feeds
  • Custom work available for an additional fee to fit your specific size constraints
  • Commercial-grade Type L copper utilized for all piping
  • Each panel is custom built to meet your specific requirements
Options:

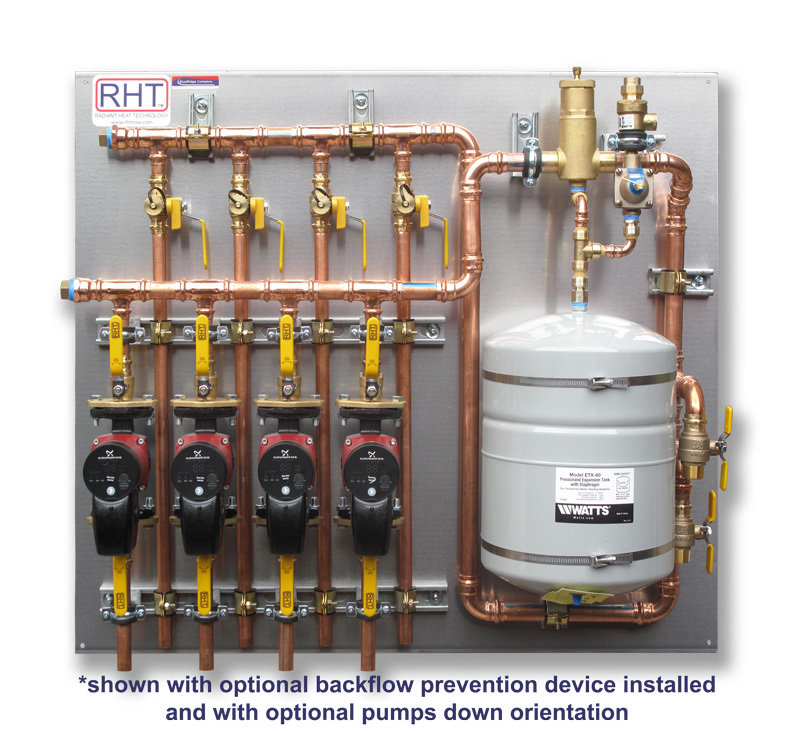

  • Pumps pointing down (up is standard)
  • Boiler connections on left hand side (right hand side is standard)
  • Mixing valves for two temperature (high/low) radiator and radiant systems
  • We can fabricate with a wide variety of pump options for more precise system system control
  • Additional piping connections for alternate heat sources

FREE shipping to all US addresses in the Lower 48.
Additional fees apply to shipments to AK, HI, and outside the US.

Documentation: RHTDominatorPumpPanel.pdf

↓   Pump Panel w/ 1" primary loop   ↓

1 Pump Dominator Distribution Panel with 1" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-1/1

$2385.68 each

2 Pump Dominator Distribution Panel with 1" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-2/1

$2823.07 each

3 Pump Dominator Distribution Panel with 1" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-3/1

$3184.56 each

4 Pump Dominator Distribution Panel with 1" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-4/1

$3486.18 each

5 Pump Dominator Distribution Panel with 1" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-5/1

$3990.49 each

6 Pump Dominator Distribution Panel with 1" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-6/1

$4244.94 each

7 Pump Dominator Distribution Panel with 1" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-7/1

$4580.88 each

↓   Select Panel branch sizes for 1" primary below (1 per pump)   ↓

3/4" Secondary Loop Branch (for 1" Primary loop)

Part No: DPP/1-Branch/34

$203.17 each

1" Secondary Loop Branch (for 1" Primary loop)

Part No: DPP/1- Branch/1

$255.77 each

Add 1" pump flange for primary loop, pump priced seperatly. This will modify the Dominator pump panel to add a primary loop pump, Used for boilers that do not ship with primary pumps.

Part No: 1" Primary pump flange set

$125.87 each

Add 1" valve between closely spaced T's

Part No: Add 1" valve

$56.98 each

Additional set of 1" closely spaced tees with shutoff valves, creates additional primary loop for a secondary heat source
2 valves, supply & return on closely spaced tees for additional primary loop add on, related fittings needed

Part No: 1-ADD-Tees

$282.80 each

Heat Pump Modification for 1" Dominator panel, eliminates Primary Loop and replaces closely spaced Tees with two 90s for connection to buffer tank

Part No: HEATPUMPPANELMOD-1

$28.52 each

Add Two Temp Injection Mixing Pump for Two Temp Systems 1"
Includes non-ECM pump to be controlled by Tekmar 406 or 356 for low temp heating and/or hi temp in floor cooling

Part No: HPVSPumpUpgrade1

$821.69 each
↓   Pump Panel w/ 1-¼" Primary Loop   ↓

1 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-1

$2542.26 each

2 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-2

$2946.51 each

3 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-3

$3298.88 each

4 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-4

$3642.29 each

5 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-5

$4000.48 each

6 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-6

$4332.41 each

7 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-7

$4746.21 each

8 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-8

$5112.99 each

9 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-9

$5454.56 each

10 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-10

$5731.49 each

11 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-11

$6085.95 each

12 Pump Dominator Distribution Panel with 1-1/4" primary loop
Pumps Pointing Up and Boiler Connections on Right Hand Side

Part No: DPP-12

$6594.74 each

↓   Select Panel branch sizes for 1-¼" primary below (1 per pump)   ↓

3/4" Secondary Loop Branch (for 1 1/4" Primary loop)

Part No: DPP/125-Branch/34

$231.15 each

1" Secondary Loop Branch (for 1 1/4" Primary loop)

Part No: DPP/125-Branch/1

$299.67 each

1 1/4" Secondary Loop Branch (for 1 1/4" Primary loop)

Part No: DPP/125-Branch/125

$324.46 each

Add 1 1/4" pump flange for primary loop, pump priced separately. This will modify the Dominator pump panel to add a primary loop pump, Used for boilers that do not ship with primary pumps.

Part No: 1 1/4" Primary pump flange set

$147.20 each

Add 1 1/4" valve between closely spaced T's

Part No: Add 1 1/4" valve

$74.80 each

Additional set of 1-1/4" closely spaced tees with shutoff valves, creates additional primary loop for a secondary heat source
2 valves, supply & return on closely spaced tees for additional primary loop add on, related fittings needed

Part No: 1.25-ADD-Tees

$387.22 each

Heat Pump Modification for 1-1/4" Dominator panel, eliminates Primary Loop and replaces closely spaced Tees with two 90s for connection to buffer tank

Part No: HEATPUMPPANELMOD-1.25

$43.00 each

Add Two Temp Injection Mixing Pump for Two Temp Systems 1.25"
Includes non-ECM pump to be controlled by Tekmar 406 or 356 for low temp heating and/or hi temp in floor cooling

Part No: HPVSPumpUpgrade1.25

$897.79 each

Custom Heat Pump In-floor Cooling Lockout 1.25" Modification
Includes 1" Taco Zone Sentry Zone Valve on supply side, spring check valve on return side, and Tekmar 003 24v relay to wire to heating call from heat pump
Prevents chilled water from reaching in floor zones in a heat/cool heat pump application where injection mixing is not present
Single temp heating only

Part No: HP-Cool-Lockout-1.25

$529.19 each
↓   Sub-Zoning Modules   ↓

Two Zone Sub-Zoning Module w/ Grundfos UP-ZV Motorized Zone Valves and Tekmar 304V

Part No: ZVC2-MOD

$1391.84 each

Three Zone Sub-Zoning Module w/ Grundfos UP-ZV Motorized Zone Valves and Tekmar 304V

Part No: ZVC3-MOD

$1719.09 each

Four Zone Sub-Zoning Module w/ Grundfos UP-ZV Motorized Zone Valves and Tekmar 304V

Part No: ZVC4-MOD

$2025.34 each
↓   Heat Pump to Buffer Tank Modules   ↓

1" Heat Pump to Buffer Tank Add-on Module with Taco 0026e ECM Pump, 1" male fittings, pressure temp gauge, drains and valves as needed mounted to Aluminum panel
For 3 ton SIM only

Part No: HeatPumpModule1

$1534.50 each

1-1/4" Heat Pump to Buffer Tank Add-on Module with Taco 0034e ECM Pump, 1-1/4" male fittings, pressure temp gauge, drains and valves as needed mounted to Aluminum panel

Part No: HeatPumpModule1.25

$1812.46 each

1-1/4" Heat Pump to Buffer Tank Add-On Module with one Taco 0026e and one Taco 0034e ECM pumps for applications with one each 3 Ton and one 5 Ton SpacePak SIM units, 1-1/4" male fittings, pressure temp gauge, drains and valves as needed mounted to Aluminum panel

Part No: 3+5DualHeatPumpModule

$3261.92 each

1-1/4" Heat Pump to Buffer Tank Add-on Module with two Taco 0034e ECM Pumps, 1-1/4" male fittings, pressure temp gauge, drains and valves as needed mounted to Aluminum panel

Part No: DualHeatPumpModule1.25

$3462.39 each

1-1/4" Heat Pump to Buffer Tank Add-on Module with Taco 0034e ECM Pumps, 1-1/4" male fittings, pressure temp gauge, drains and valves as needed mounted to Aluminum panel

Part No: TripleHeatPumpModule1.25

$4685.45 each

1-1/4" Heat Pump to Buffer Tank Add-on Module with Taco 0034e ECM Pumps, 1-1/4" male fittings, pressure temp gauge, drains and valves as needed mounted to Aluminum panel

Part No: QuadHeatPumpModule1.25

$5132.47 each
↓   Heat Pump Module Add Ons   ↓

Heat Pump Module DHW add on, adds 3-way Griswold Valve, 40 plate heat exchanger, and Taco 006e DHW pump to use heat pump for domestic hot water, requires separate electric water heater as storage tank

Part No: HPM-DHW

$2690.12 each

Heat Pump Module DHW add on for R32 SpacePak Units, not for 410A units, adds 3-way Griswold Valve, requires high output indirect water heater

Part No: HPM-DHW-R32

$873.21 each

Heat Pump Module Electric Boiler Backup add on, requires Thermolec mini boiler to be selected separately, includes Grundfos Alpha I pump and pressure relief valve

Part No: HPM-TMB

$994.39 each

Heat Pump Module Gas Boiler Backup add on, requires gas boiler to be selected separately, includes shutoff valves and stainless flex connectors

Part No: HPM-Gas

$501.88 each
↓   Panel Upgrade Options   ↓

Switch boiler supply & return valves to left side (right side is standard)

Part No: ValveLeft

$28.94 each

Switch pumps to point down (up is standard)

Part No: PumpDown

$55.40 each

Switch orientation of panel to vertical with pumps to the left and boiler connections to the right

Part No: PumpsLeft

$250.00 each

Switch orientation of panel to vertical with pumps to the right and boiler connections to the left

Part No: PumpsRight

$250.00 each

Add 95-131F mixing valve and thermometer to panel. includes additional fittings required.

Part No: Lo-3Way

$196.25 each

Add 104-176F mixing valve and thermometer to panel. includes additional fittings required.

Part No: Hi-3Way

$192.53 each

Optional 1-1/4" Tekmar 3-Way Mixing Valve installed on panel. With fittings and valves included, motor and control sold separately

Part No: Tekmar 3Way

$726.09 each

Upgrade to ETX-60 6.0 gallon expansion tank

Part No: ETX-60UP

$62.31 each

Upgrade to Amtrol EX-90 Expansion Tank

Part No: Amtrol ETX-90 UP

$171.94 each

Upgrade to Watts ETSX-40 20 gallon free-standing expansion tank

Part No: Watts ETSX-40 UP

$441.51 each

Upgrade to Watts ETSX-40 20 gallon free-standing expansion tank

Part No: Watts ETSX-60 UP

$619.82 each

B9-11T Watts Backflow Preventer Installed on Panel (includes backflow preventer and all parts)

Part No: BFP-UP

$388.24 each

UPgrade to potable water expansion tank B&G PT-25V 10.3 gallon expansion tank.

Part No: 1BN319LF-UP

$382.17 each

Substitute Taco Flange Taco IRON Pump (upgrade charge per pump, choose quantity of 1 for each zone that will be sub-zoned)

Part No: 0014-F1 up

$87.58 each

Heat exchange add on to secondary branch, works for snow melt integrated to larger system, includes:
30 brazed plate 140,000 BTU/hr heat exchanger, 4 flex connectors, 4 male adapters, Grundfos Alpha I pump, flange set, expansion tank, air eliminator, temp pressure gauge
Pump upgrades will be necessary to match head pressure in some Snow Melt systems

Part No: HX-Snowmelt-Add-On

$2661.32 each

Heat exchange add on for heat source, works for wood boilers or water heaters. 2 12"x1" SS flex connectors, 1 Brazed 40 Plate Heat Ex-changer, 180,000 BTU and bracket mounted to pump panel. temp pressure gauge on dominator panel side. Replaces closely spaced T's with 90's.

Part No: HX-WB-Add-On-1

$1424.70 each

Add Grundfos UPSe Iron pump, 1" pump flanges, 2 1' flex connectors to heat ex-changer heat source side.

Part No: HX-Pump-1

$637.84 each

Heat exchange add on for heat source, works for wood boilers or water heaters. 2 12"x1-1/4" SS flex connectors, 1 Brazed 50 Plate Heat Ex-changer, 220,000 BTU and bracket mounted to pump panel. temp pressure gauge on dominator panel side. Replaces closely spaced T's with 90's.

Part No: HX-WB-Add-On-1.25

$1974.21 each

Add Grundfos UPSe Iron pump, 1-1/4" pump flanges, 2 1-1/4" flex connectors to heat ex-changer heat source side.

Part No: HX-Pump-1.25

$615.86 each

Titatnium Heat exchange add on for using pool water as heat source. 200,000 BTU/hr titanium tube and shell heat exchanger mounted on panel, temp pressure gauge on dominator panel side
Replaces closely spaced T's with heat exchanger

Part No: HX-TW-Add-On-1.25

$2154.27 each

1" Spirotherm Hydraulic separator option, replaces our standard air eliminator with Spirotherm Hydraulic separator. This will increase boiler panel width by 18"

Part No: 1" Hydraulic separator

$898.65 each

1 1/4" Spirotherm Hydraulic separator option, replaces our standard air eliminator with Spirotherm Hydraulic separator. This will increase boiler panel width by 18"

Part No: 1 1/4" Hydraulic separator

$1046.99 each

Configure 1 Pump for Domestic Side Arm Tank, 1 Pump & flange assembly is moved to supply on primary/boiler loop

Part No: dhw-sidearm

$186.75 each
↓   Circulator Pump Upgrade Options   ↓

Upgrade from Grundfos UPSe Cast Iron Circulator to Taco 0018e SF4 Stainless Steel ECM Circulator
(upgrade charge per pump)

Part No: 0018eSF4UP

$273.05 each

Upgrade to Grundfos Magna 1 32-60 pump
(available only on Dominator and Titan panels)
(upgrade charge per pump)

Part No: MAGNA60UP

$677.83 each

Upgrade to Grundfos Magna 1 32-100 pump
(available only on Dominator and Titan panels)
(upgrade charge per pump)

Part No: MAGNA100UP

$677.83 each

Upgrade to Taco 0018e Infinitely Variable Speed Proportional Pressure high efficiency ECM pump
(upgrade charge per pump)

Part No: 0018eUP

$125.45 each

Upgrade to Taco Viridian VT2218 high efficiency ECM Delta T pump
(upgrade charge per pump)

Part No: VT2218UP

$243.23 each

Upgrade to Taco 0026e ECM High-Efficiency Circulator
(available only on Dominator and Titan panels)
(upgrade charge per pump)

Part No: 0026eUP

$514.77 each

Upgrade to Taco 0034e ECM High-Efficiency Circulator
(available only on Dominator and Titan panels)
(upgrade charge per pump)

Part No: 0034eUP

$689.87 each

Upgrade to Taco VR3452 ECM High-Efficiency Circulator (only available for Dominator and Titan panels)
(upgrade charge per pump)

Part No: VR3452UP

$537.78 each

Upgrade to Taco 2400-50-3P Cast Iron Circulator
(available only on Dominator and Titan panels)
(upgrade charge per pump)

Part No: 2400-50-UP

$706.04 each

Upgrade to Taco VR15M-F ECM High-Efficiency Circulator
(available only on Dominator and Titan panels)
(upgrade charge per pump)

Part No: VR15M-UP

$2603.61 each
↓   RHT Glycol Fill Unit   ↓

RHT Hydronic Fill & Purge System / Glycol Fill Unit
RHTHydronicFill_PurgeSystem.pdf

Part No: RHT Glycol Pump

$553.29 each
$1991.85 (4 x $497.96)

VERSIJET MPU 115V S/E 3.5C SW20 5.0 GPM PC

Part No: 08500500A

$353.46 each

Easy Connection Kit for RHT Hydronic Fill & Purge System
Includes:

  • ½" RHT Push-fit Ball Valve
  • ½" SharkBite elbow
  • ½" SharkBite x ¾" FNPT Reducing Connector

    Part No: FILL-CONNECT-KIT

$49.10 each
↓ HTP Elite Fire Tube Ultra Heat Only Boilers ↓

HTP Elite Fire Tube Ultra 85,000 BTU/hr Heat Only Condensing Boiler

Part No: EFTU-85WBN

$2806.13 each

HTP Elite Fire Tube Ultra 110,000 BTU/hr Heat Only Condensing Boiler

Part No: EFTU-110WBN

$2990.45 each

HTP Elite Fire Tube Ultra 150,000 BTU/hr Heat Only Condensing Boiler

Part No: EFTU-150WBN

$3262.02 each

HTP Elite Fire Tube Ultra 199,000 BTU/hr Heat Only Condensing Boiler

Part No: EFTU-199WBN

$3602.69 each
↓ HTP Elite Fire Tube Ultra Combi Boilers ↓

HTP Elite Fire Tube Ultra 110,000 BTU/hr Condensing Combi Boiler/Water Heater

Part No: EFTU-110WCN

$3274.05 each

HTP Elite Fire Tube Ultra 150,000 BTU/hr Condensing Combi Boiler/Water Heater

Part No: EFTU-150WCN

$3467.35 each

HTP Elite Fire Tube Ultra 199,000 BTU/hr Condensing Combi Boiler/Water Heater

Part No: EFTU-199WCN

$3882.03 each
↓ Cascading Boiler Kit ↓

Cascade Kit: includes BUS Connectors, SYS Connector, System Sensor, Instructions

Part No: 9800P-002

$68.00 each
↓ Connection Kits ↓

Temp/Pressure Gauge Adapter Kit
1-¼"x1-¼"x½" brass reducing tee and 1-¼"x2" brass nipple for external connection of triadicator on boiler supply

Part No: HTP-T/P-Kit

$42.68 each

Indirect Water Heater Connection Kit
1-¼"x1-¼"x1" brass reducing tee, 1-¼"x2" brass nipple, 1"x2" brass nipple, and 1"x¾" reducer bushing, for connection of indirect water heater with 1" stainless steel flex lines

Part No: HTP-I/D-Kit

$61.24 each
↓   RHT Tankless Water Heater Valve Set   ↓

RHT Tankless Water Heater Valve Set with 150psi PRV

Part No: RHT LFTWH1

$95.98 each
↓   Stainless Steel Flex Connectors   ↓

3/4″ I.D. SS Flex with 3/4″ FIP x 3/4″ FIP x 12″ (FF-12)

Part No: SWC340-12

$24.08 each

3/4″ I.D. SS Flex with 3/4″ FIP x 3/4″ FIP x 18″ (FF-18)

Part No: SWC340-18

$29.25 each

3/4″ I.D. SS Flex with 3/4″ FIP x 3/4″ FIP x 24″ (FF-24)

Part No: SWC340-24

$30.47 each

1" I.D. Stainless Steel Flex Boiler Connector, 1" FIP x 1" FIP x 6" long

Part No: SWC1-6

$26.21 each

1" I.D. Stainless Steel Flex Boiler Connector, 1" FIP x 1" FIP x 12" long

Part No: SWC1-12

$37.83 each

1" I.D. Stainless Steel Flex Boiler Connector, 1" FIP x 1" FIP x 18" long

Part No: SWC1-18

$52.10 each

1" I.D. Stainless Steel Flex Boiler Connector, 1" FIP x 1" FIP x 24" long

Part No: SWC1-24

$57.70 each

1" I.D. Stainless Steel Flex Boiler Connector, 1" FIP x 1" FIP x 36" long

Part No: SWC1-36

$73.25 each

1-1/4" I.D. Stainless Steel Flex Boiler Connector, 1-1/4" FIP x 1-1/4" FIP x 12" long

Part No: SWC114-12

$55.19 each

1-1/4" I.D. Stainless Steel Flex Boiler Connector, 1-1/4" FIP x 1-1/4" FIP x 18" long

Part No: SWC114-18

$70.53 each

1-1/4" I.D. Stainless Steel Flex Boiler Connector, 1-1/4" FIP x 1-1/4" FIP x 24" long

Part No: SWC114-24

$79.23 each

1-1/2″ I.D. SS Flex with 1-1/2″ FIP x 1-1/2″ FIP x 18′

Part No: SWC112-18

$91.29 each

1-1/2″ I.D. SS Flex with 1-1/2″ FIP x 1-1/2″ FIP x 24′

Part No: SWC112-24

$101.07 each

1-1/2" I.D. Stainless Steel Flex Boiler Connector, 1-1/2" FIP x 1-1/2" FIP x 36" long

Part No: SWC112-36

$117.33 each

2″ I.D. SS Flex with 2″ FIP x 2″ FIP x 18″

Part No: SWC2-18

$130.68 each

2″ I.D. SS Flex with 2″ FIP x 2″ FIP x 24″

Part No: SWC2-24

$149.04 each

3/4" x 18" Flexible stainless steel gas pipe Male & Female adapter CSA certified for indoor use rated 200,000 BTU.

Part No: SGC10DC18A

$43.89 each
↓   UEI Combustion Analyzer Rental Tool   ↓

C75 Kit Rental, $200 for Two Weeks Minimum Charge
rental fee prorated daily after two weeks

Part No: C75/Kit

$882.24 each

Site Links

Contact

Toll Free: (866) 361-4782

Fax: 206-274-1501

17420 Vashon Hwy SW
PO Box 2270
Vashon, WA 98070

Copyright © 2024 BlueRidgeCompany.com All rights reserved.
