Flow & Wiring Diagrams for RHT Prefabricated Pump Panels
At BlueRidge Company, we know that precision and clarity are essential when it comes to installing radiant heating systems. On this page, you’ll find detailed technical documents that include pump flow charts, wiring diagrams, and specifications for key components such as Tekmar switching relays and thermostats. Each document is designed to guide contractors and homeowners through every step of the process, and we strongly recommend reviewing them in full before beginning any installation.

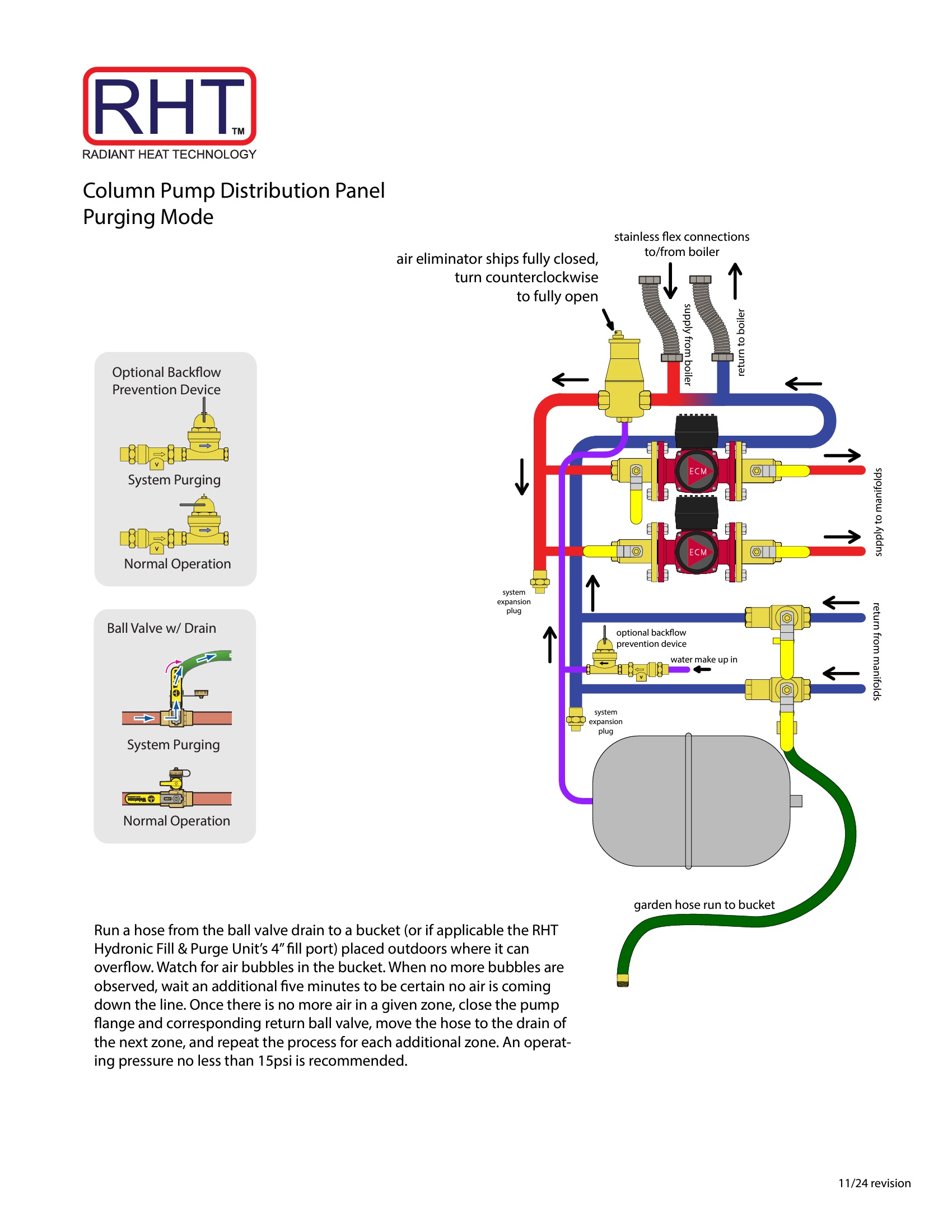

RHT Column Prefab Pump Panel
Detailed flow and wiring diagrams for the RHT Column Prefab Pump Panel.
Download PDF

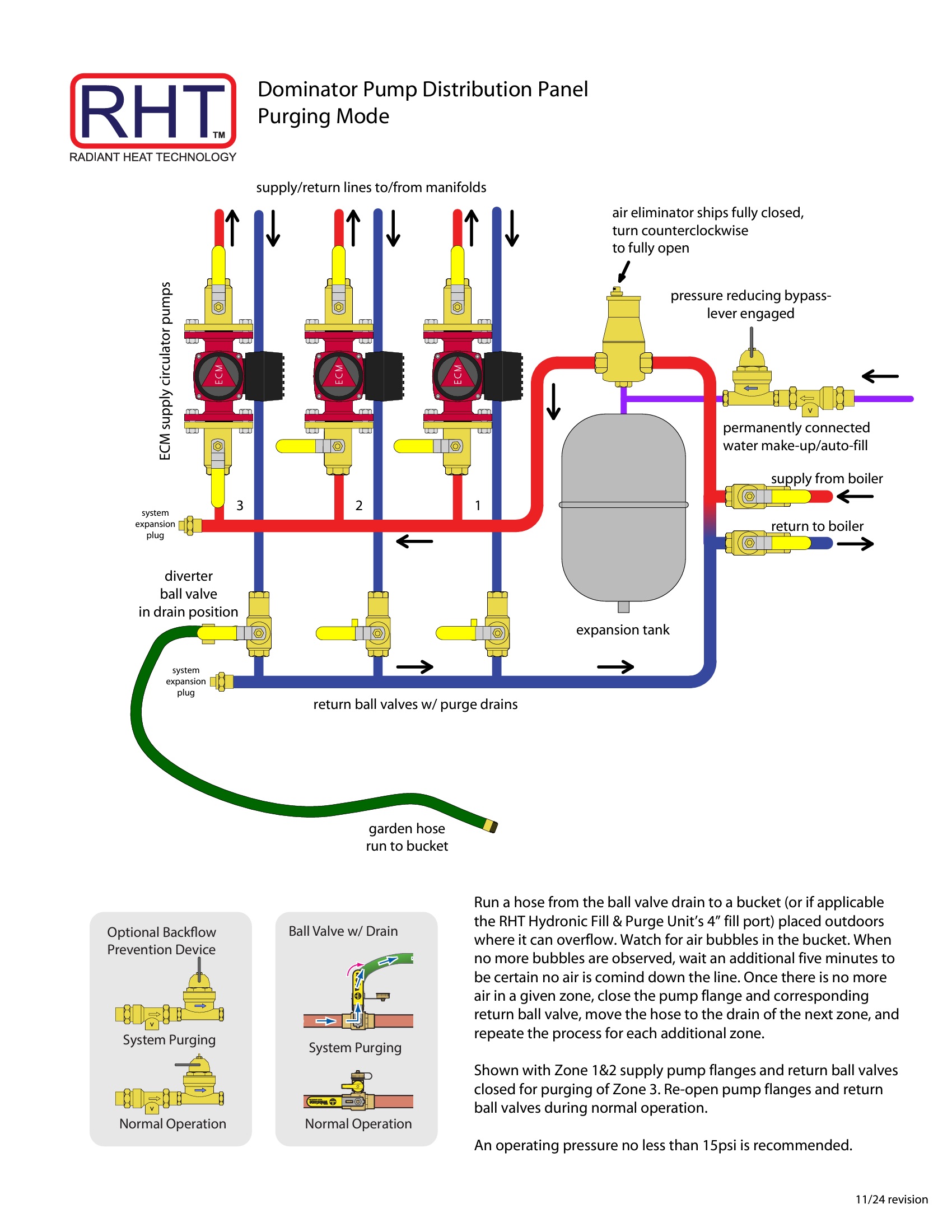

RHT Dominator Prefab Pump Panel
Detailed flow and wiring diagrams for the RHT Dominator Prefab Pump Panel.
Download PDF

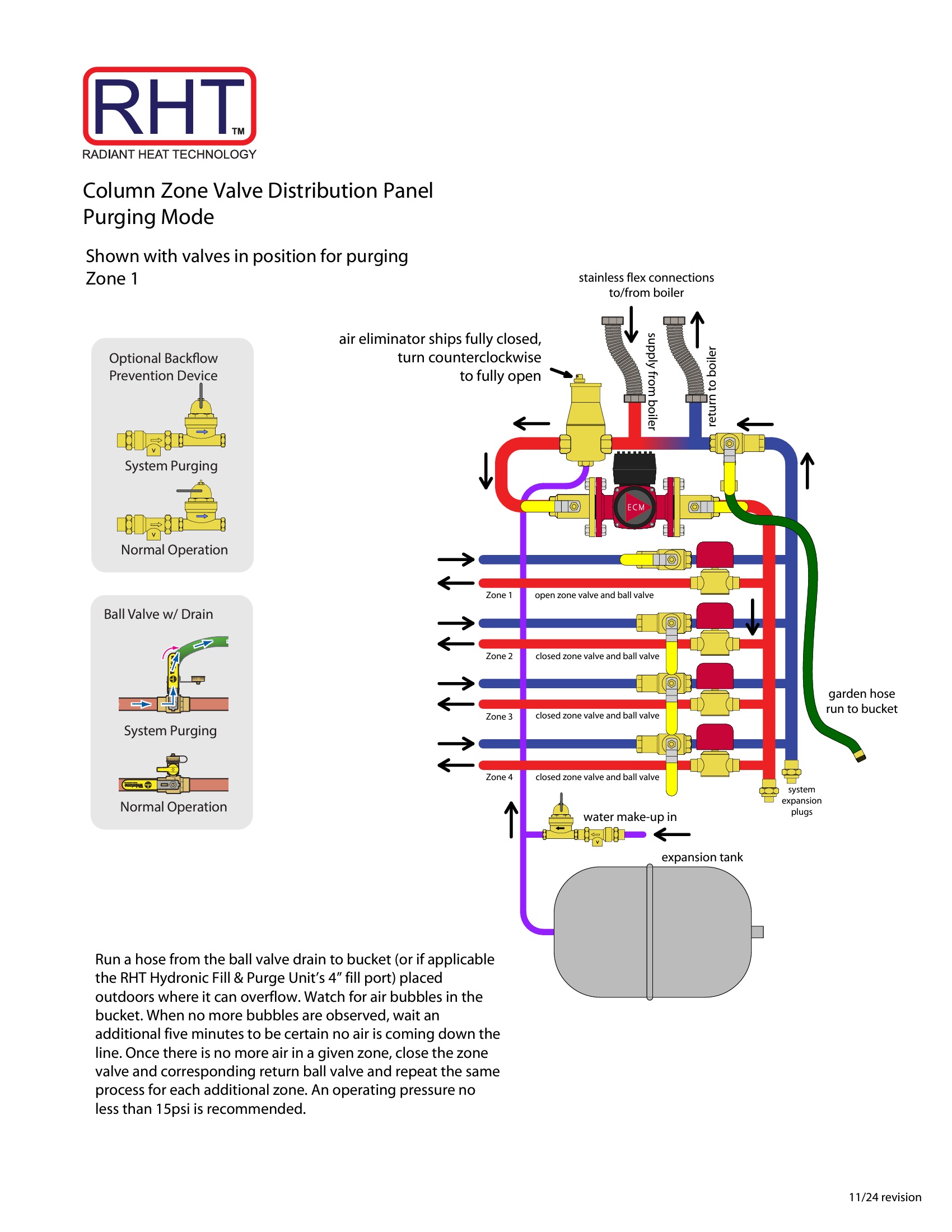

RHT Zone Valve Prefab Pump Panel
Detailed flow and wiring diagrams for the RHT Zone Valve Prefab Pump Panel.
Download PDF

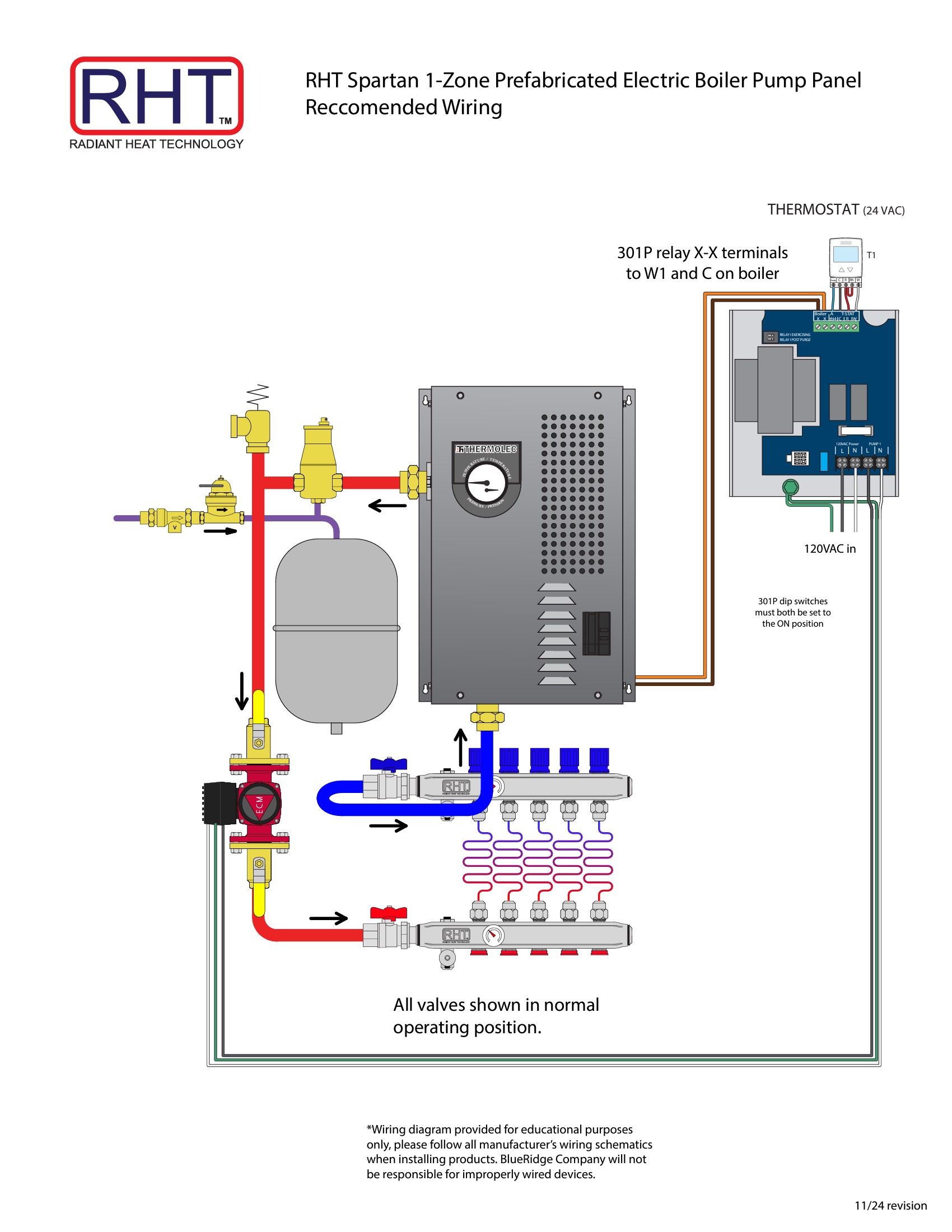

RHT Spartan Electric Boiler Prefab Panel
Detailed specifications and wiring diagrams for the RHT Spartan Electric Boiler Prefab Panel.
Download PDF

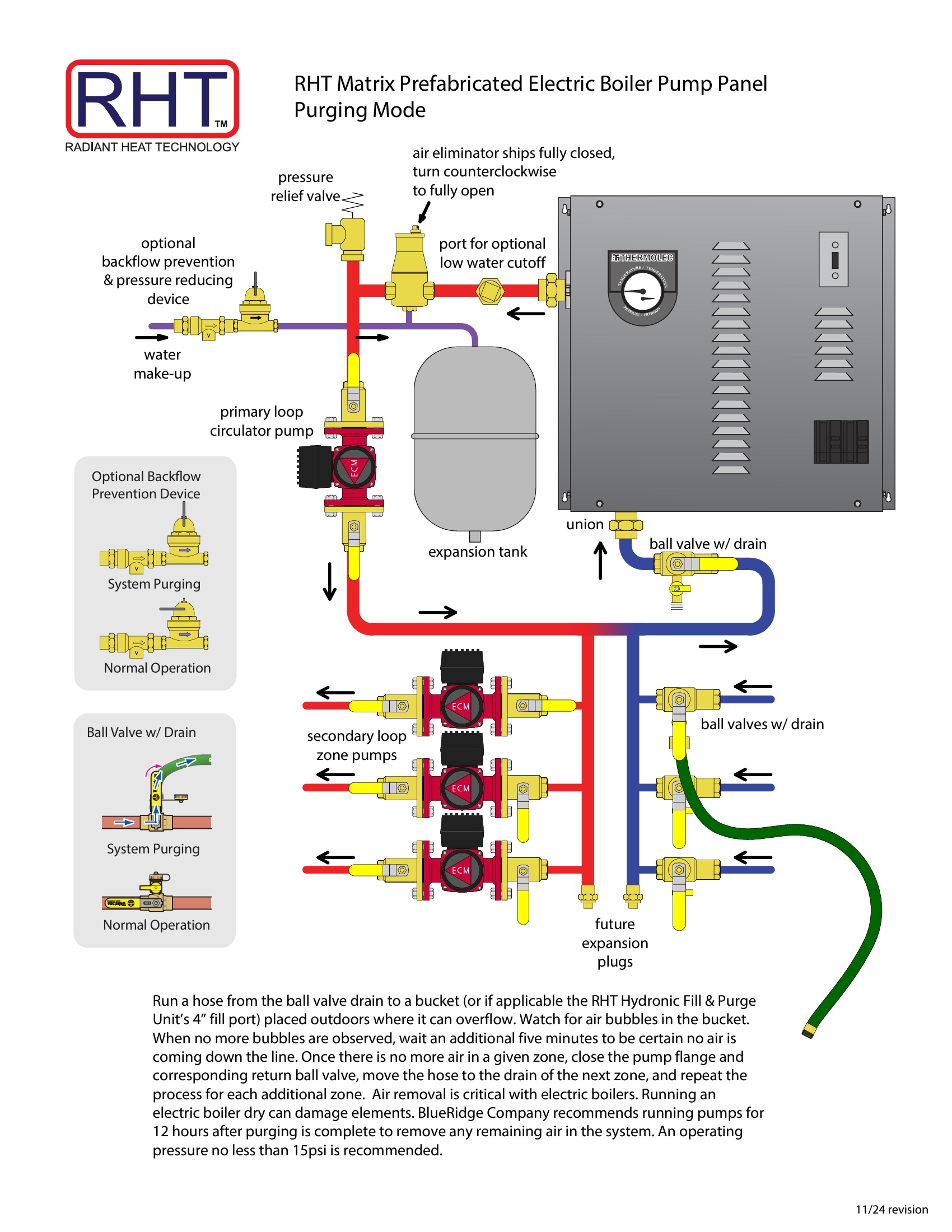

RHT Matrix Electric Boiler Prefab Pump Panel
Detailed flow and wiring diagrams for the RHT Matrix Electric Boiler Prefab Pump Panel.
Download PDF

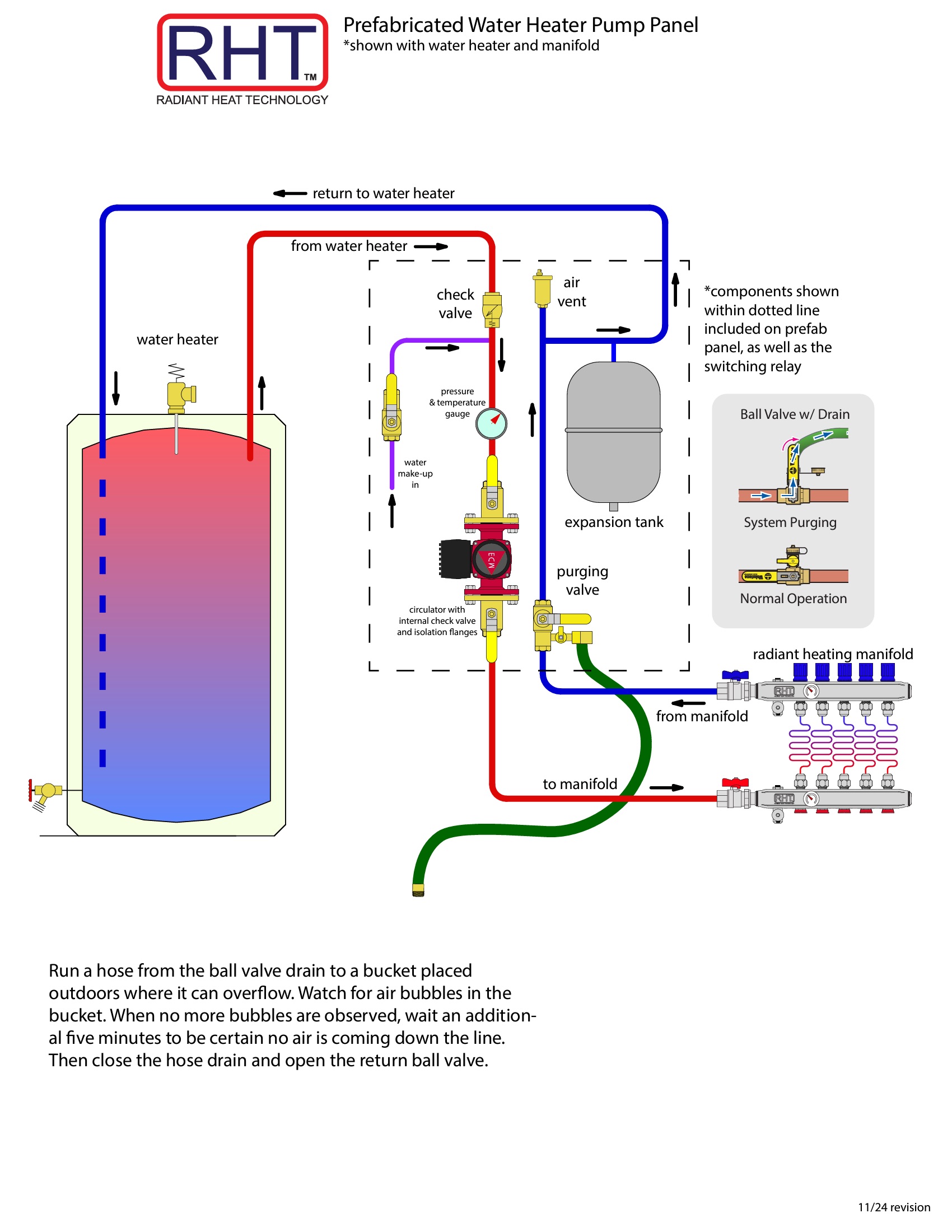

RHT Prefab Water Heater Pump Panel
Detailed flow and wiring diagrams for the RHT Prefab Water Heater Pump Panel.
Download PDF

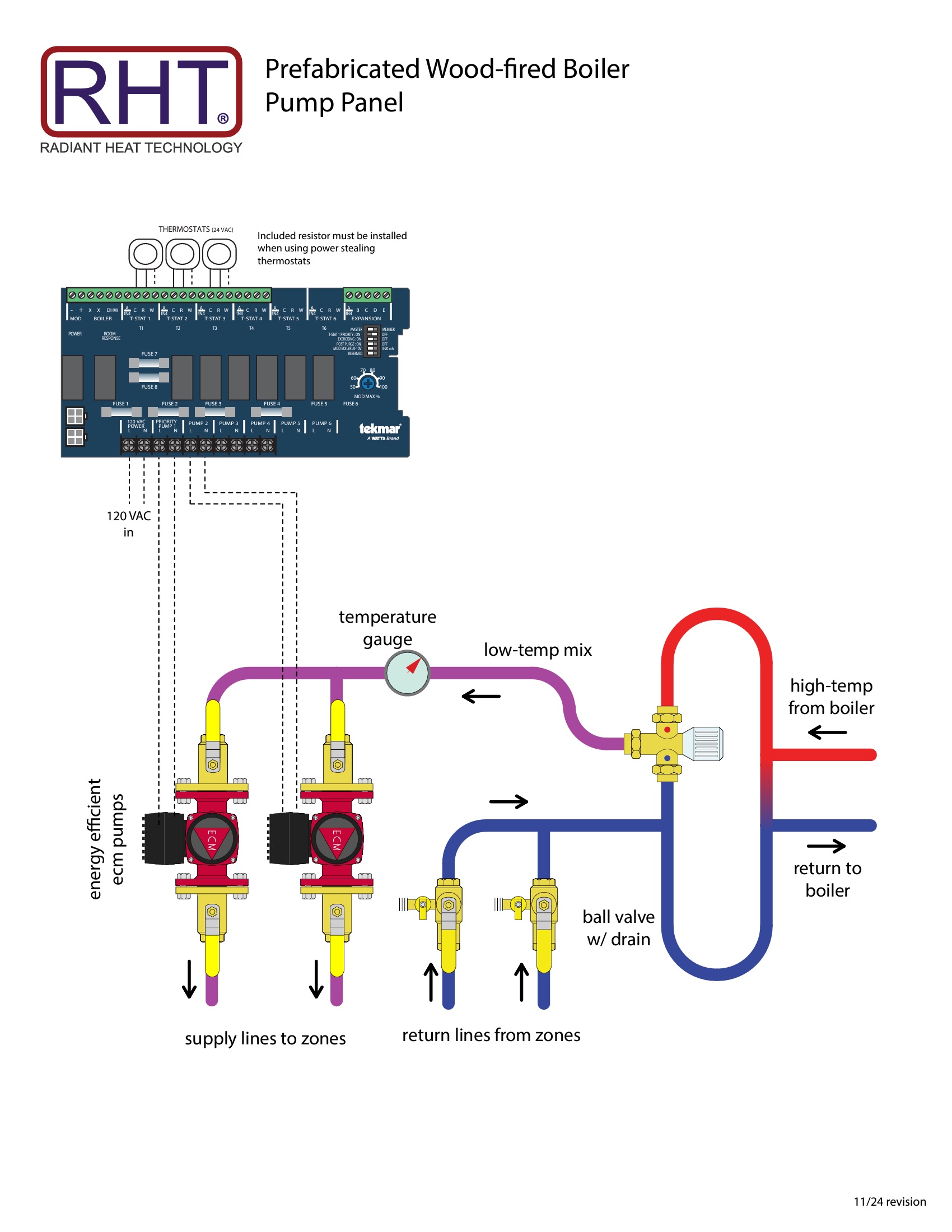

RHT Wood-fired Boiler Prefab Pump Panel
Detailed flow and wiring diagrams for the RHT Wood-fired Boiler Prefab Pump Panel.
Download PDF

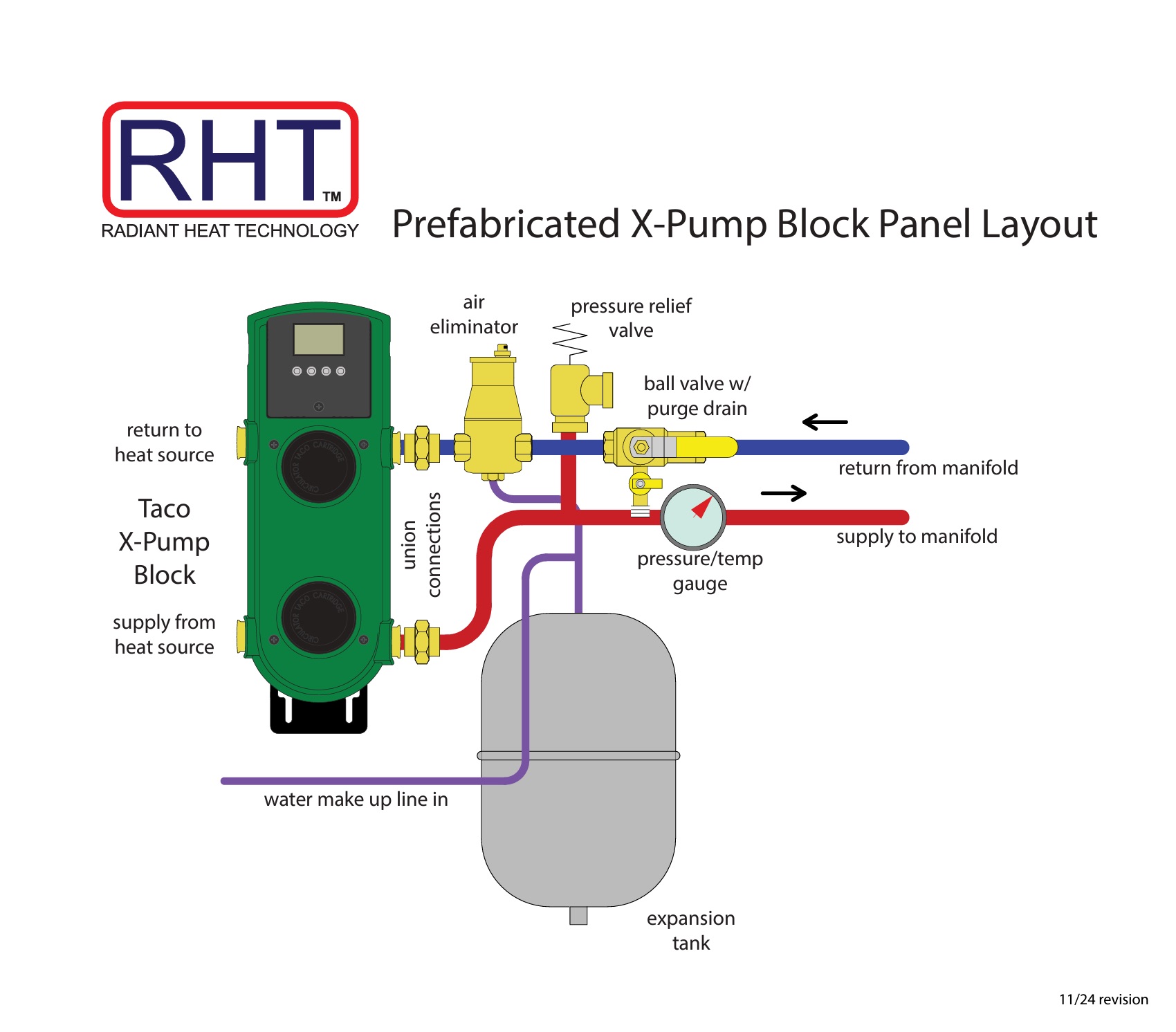

RHT Taco X-Block Prefab Pump Panel
Detailed flow diagram for the RHT Taco X-Block Prefab Pump Panel.
Download PDF

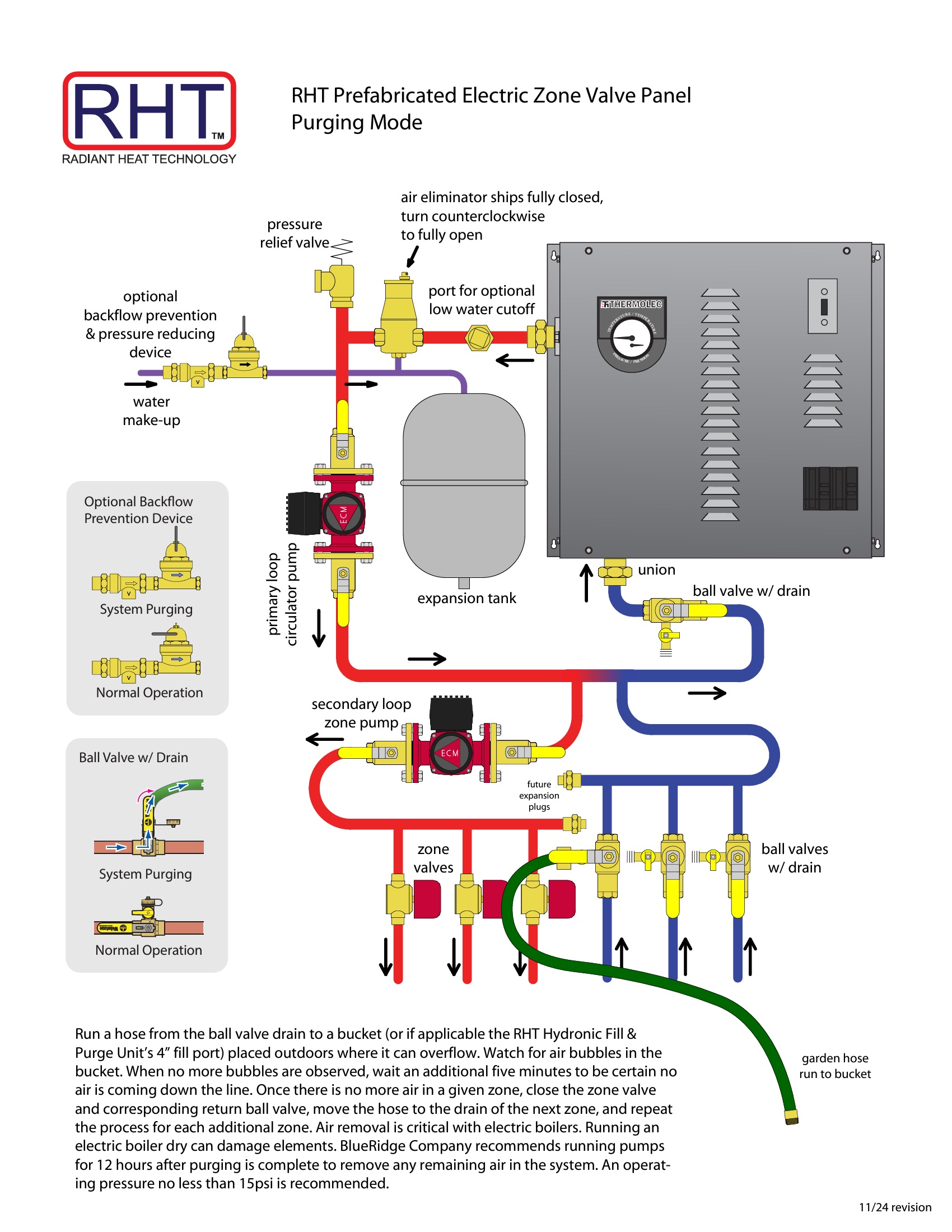

RHT Electric Boiler Zone Valve Prefab Pump Panel
Detailed flow and wiring diagrams for the RHT Electric Boiler Zone Valve Prefab Pump Panel.
Download PDF
