RHT Water Heater Pump Panels

Compact design is simple to install and operate

An excellent value & time-saver, RHT water heater pump panels are compatible with any brand or model of water heater. Perfect for installing radiant heat in a small shop, garage, home, single or two zone application.

Features:

  • Closed loop systems as standard
  • Optional Stainless Steel pump upgrade for use in an open loop potable water system
  • Energy-efficient Grundfos UPSe Pump
  • Tekmar switching relay
  • Push fit connections to water heater


When using a tankless water heater you will need to independently verify the flow rate and head pressure of your water heater. Many on-demand water heaters have substantial head pressure. Several higher head pressure pumps are offered as upgrades. Please confirm you select the correct pump for your system.

Documentation: RHTWaterHeaterPumpPanel.pdf

↓   Prefabricated Panel   ↓

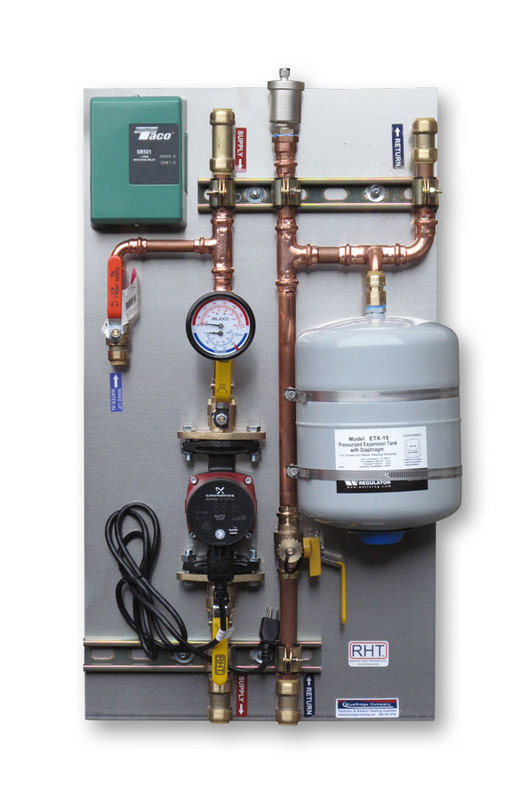

Prefabricated 1 Zone 3/4" Water Heater Pump Panel

Part No: WHPP

$2117.51 each

Prefabricated 1 Zone 1" Water Heater Pump Panel

Part No: WHPP11

$2171.60 each

Prefabricated 2 Zone 3/4" Water Heater Pump Panel

Part No: WHPP2(column)

$3355.38 each

Prefabricated 2 Zone 1" Water Heater Pump Panel

Part No: WHPP12(column)

$3418.10 each

TM Horizontal 1 Zone Dual 3" Temperature/Pressure Gauge Taco 2400-50-3P High-Capacity Circulator .

Part No: TM-H-1Z

$3247.48 each
↓   Panel Upgrades   ↓

Substitute Stainless Steel Taco 0018e Circulator Pump and B&G PT-5 expansion tank for open loop system

Part No: PotableUP

$390.28 each

Upgrade Taco 0015e3 ECM variable speed,

Part No: Taco 0015e3 up

$124.80 each

Upgrade water heater pump panel to 0010-F3-1IFC

Part No: 0010-F3-1IFCUP

$179.00 each

Upgrade to Taco 009-F5 pump

Part No: 009UP

$164.77 each

Upgrade to Taco 0011-F4 pump

Part No: 0011UP

$465.15 each

Upgrade to Taco 009-SF5 stainless steel pump (order together with potable upgrade for potable system with tankless water heater).

Part No: 009SSUP

$687.76 each

Upgrade to Taco 0011-SF4 stainless steel pump (order together with potable upgrade for potable system with tankless water heater).

Part No: 0011SSUP

$756.39 each

Install Watts B9-11T Backflow Preventer on Panel (includes backflow preventer and all parts)

Part No: BFP-UP

$300.62 each

Add Webstone 78204W mixing valve to the System. Includes thermometer.

Part No: 3-way-mix

$202.35 each

Substitute Taco single pump control with Tekmar 4 Zone Valve Control Part# 304V. Provides 4 sub zones. This provides sub zoning on manifold using RHT Actuators, not mounted to pump panel.

Part No: Sub zone up

$98.85 each
↓   Pipe & Manifold Packages   ↓

2 circuit pipe & manifold package. Includes:

  • 2 port copper supply & return manifolds with pex crimp ball valve branches
  • Two 300' rolls of 1/2" pex B tubing
  • Pex tubing cutter
  • 1/2" crimp rings

Part No: 2CPMP

$270.36 each

3 circuit pipe & manifold package. Includes:

  • 3 port copper supply & return manifolds with pex crimp ball valve branches
  • One 900' roll of 1/2" pex B tubing
  • Pex tubing cutter
  • 1/2" crimp rings

Part No: 3CPMP

$360.80 each

4 circuit pipe & manifold package. Includes:

  • 4 port copper supply & return manifolds with pex crimp ball valve branches
  • One 900' roll of 1/2" pex B tubing
  • One 300' roll of 1/2" pex B tubing
  • Pex tubing cutter
  • 1/2" crimp rings

Part No: 4CPMP

$471.37 each

5 circuit pipe & manifold package. Includes:

  • 5 port copper supply & return manifolds with pex crimp ball valve branches
  • One 900' roll of 1/2" pex B tubing
  • Two 300' rolls of 1/2" pex B tubing
  • Pex tubing cutter
  • 1/2" crimp rings

Part No: 5CPMP

$624.50 each

6 circuit pipe & manifold package. Includes:

  • 6 port copper supply & return manifolds with pex crimp ball valve branches
  • Two 900' rolls of 1/2" pex B tubing
  • Pex tubing cutter
  • 1/2" crimp rings

Part No: 6CPMP

$702.44 each
↓   RHT Hydronic Fill & Purge System   ↓

RHT Hydronic Fill and Purge System

Part No: RHT-HFPS

$422.79 each

Easy Connection Kit for RHT Hydronic Fill & Purge System
Includes:

  • ½" RHT Push-fit Ball Valve
  • ½" SharkBite elbow
  • ½" SharkBite x ¾" FNPT Reducing Connector

    Part No: FILL-CONNECT-KIT

$49.10 each
↓   RHT Supply/Return Connection Kits   ↓

RHT 3/4” Manifold to Pump Panel Connection Kit Lead free push-fit supply/return connection kit
contains two 3/4 couplings and two 3/4 push-fit x 1” MNPT connectors
For 3/4” secondary branch connections

Part No: RHT-3/4-S/R-Kit

$44.16 each

RHT 1” Manifold to Pump Panel Connection Kit Lead free push-fit supply/return connection kit
contains two 1inch; couplings and two 1in; push-fit x 1”; MNPT connectors
For 1” secondary branch connections

Part No: RHT-1-S/R-Kit

$53.36 each
