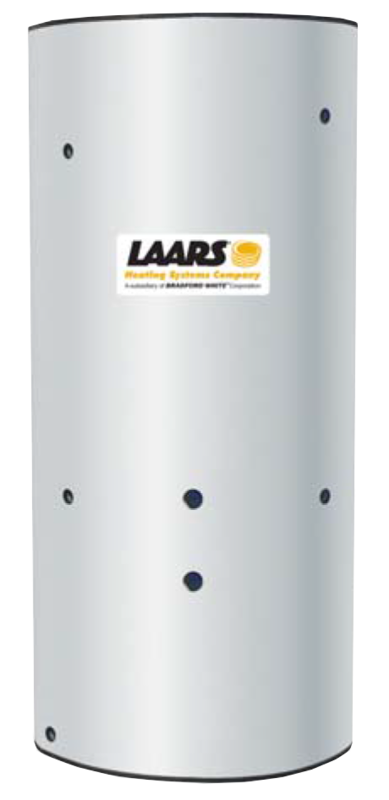

Laars Jacketed Hot Water Storage Tanks


Commercial Storage Tank

Laars products are no longer available
Please see the HTP Elite Fire Tube Ultra line of high efficiency wall hung modulating condensing boilers here

Specially designed for installations where the peak demands require stored water. Both dependable and versatile, the storage tank is perfect for simple installations or for needed replacements. The tank can become a storage system by simply manifolding several tanks together when larger quantities of stored water are necessary. The Commercial Storage Tank meets the stringent efficiency performance criteria for energy consuming appliances set forth in ASHRAE 90.1b.

  • 2" Non-CFC foam insulation
  • Jacket is painted, cold-rolled steel
  • Interior coated with durable high-silica-content glass, suited for commercial tanks subjected to large quantities of high temperature water.
  • 150psi working pressure rating
  • Two protective magnesium anode rods for added protection against corrosion
  • Factory-installed true dielectric fittings extend water heater life and ease installation

Documentation: LaarsVolumeWaterHeaterTanks.pdf

80 gallon glass lined, insulated, jacketed & painted tank, 2" connections top and side. 24" diameter x 62" high

Part No: A0073100

80 gallon ASME-rated, glass lined, insulated, jacketed & painted tank, 2" connections top and side. 24" diameter x 62" high

Part No: A0073101

120 gallon glass lined, insulated, jacketed & painted tank, 2" connections top and side. 28" diameter x 66" high

Part No: A0078800

200 gallon ASME-rated, glass lined, insulated, jacketed & painted tank, 2.5" connections top and side. 32" diameter x 80" high

Part No: A2086000
