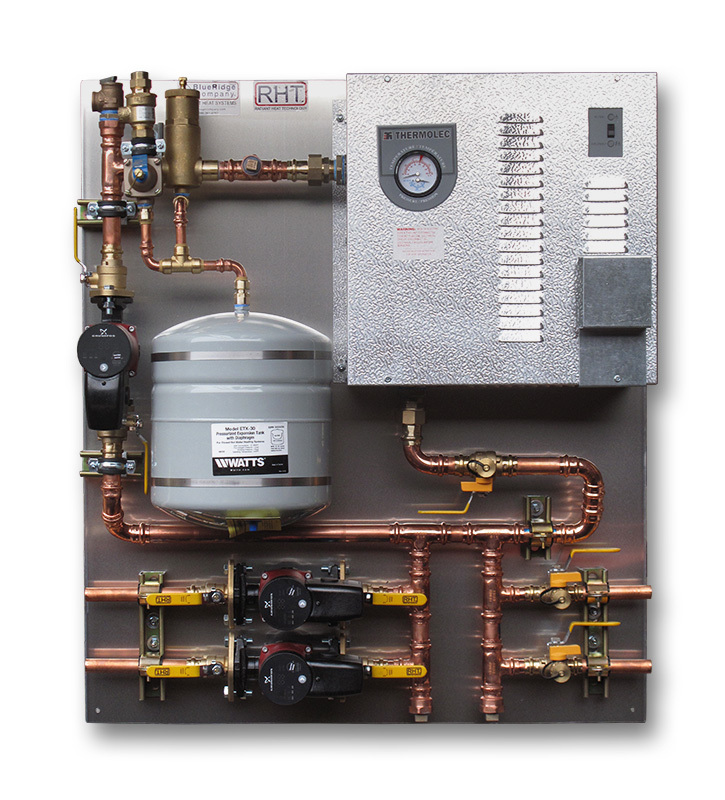

RHT Prefabricated Matrix Thermolec Boiler Pump Panels

Simplify Your Radiant Heating Project

RHT Boiler Panels are professionally manufactured, pre-assembled hydronic heating systems. Prefabricated Boiler Panels are an excellent value & time-saver, simplifying your radiant heat installation. On-site work will consist of connecting your supply & return lines to the boiler, supply & return lines to manifolds, site wiring and providing make-up water supply.

Features:

  • Grundfos UPSe high efficiency ECM circulators
  • Commercial-grade Type L copper and securely mounted to an aluminum panel
  • Primary/secondary piping design
  • High efficiency air separator
  • ETX-30 expansion tank (larger tanks may be needed on bigger systems)
  • Zone pumps and zone switching relay
  • Service valves
  • Boiler drain
  • A tapping for optional low water cut off
  • Panel sizes vary depending on the number of zones, but typically measure 48" wide x 48" high x 12" deep

    Panel and boiler priced separately, but only sold as a complete prefabricated unit. First select the panel containing the size of primary loop and number of zone pumps desired, then select the appropriate boiler to complete the panel. Zone pump upgrades are available and are listed below.

    BlueRidge Company technicians are pleased to assist you with a total system design whether it is for one room, whole house, warehouse/workshop, condominium or commercial building. Call us at 866-361-4782 for a quote.


    FREE shipping to all US addresses in the Lower 48.
    Additional fees apply to shipments to AK, HI, and outside the US.

    • Documentation: RHTMatrixPrefabPanel.pdf

    ↓   First select size of Primary Loop then select # of Zone Pumps within that size category.  ↓
    ↓   Next select Thermolec boiler from choices below.   ↓
    ↓   BlueRidge Company would be happy to help with sizing and selection.   ↓
    ↓   Panels with 1" Copper Primary Loop  ↓

    1 Zone Pump Electric Prefab Panel with 1" Primary Loop

    Part No: EPP1-1

    $2878.27 each

    2 Zone Pump Electric Prefab Panel with 1" Primary Loop

    Part No: EPP2-1

    $3245.56 each

    3 Zone Pump Electric Prefab Panel with 1" Primary Loop

    Part No: EPP3-1

    $3611.59 each

    4 Zone Pump Electric Prefab Panel with 1" Primary Loop

    Part No: EPP4-1

    $3958.62 each

    5 Zone Pump Electric Prefab Panel with 1" Primary Loop

    Part No: EPP5-1

    $4309.36 each

    ↓   Select Panel branch sizes for 1" primary below (1 per pump)   ↓

    3/4" Secondary Loop Branch (for 1" Primary loop)

    Part No: EPP/1-Branch/34

    $151.23 each

    1" Secondary Loop Branch (for 1" Primary loop)

    Part No: EPP/1-Branch/1

    $210.01 each

    1" Alternate valve assembly on left side of panel for future heat pump or boiler. 2 valves supply, return on closely spaced T for injection boiler add on, related fittings needed.

    Part No: AV 1" x 2

    $387.85 each

    1" Alternate valve assembly on left side of panel for future heat pump or boiler. 3 valves supply, return and valve between T's ,related fittings needed

    Part No: AV 1"x3

    $398.78 each

    Expandable tap and plug set 1'

    Part No: EX-TPS 1"

    $46.87 each

    Add 2 pumps to foot of 1" panel. Presented on Aluminum panel, 2 1"x 6" flex connectors and related parts to mate to standard 1" pump panel. Switching relay not included.

    Part No: Add 2 pumps

    $1446.09 each
    ↓   Panels with 1-1/4" Copper Primary Loop  ↓

    1 Zone Pump Electric Prefab Panel with 1-1/4" Primary Loop

    Part No: EPP1-1.25

    $3010.37 each

    2 Zone Pump Electric Prefab Panel with 1-1/4" Primary Loop

    Part No: EPP2-1.25

    $3437.64 each

    3 Zone Pump Electric Prefab Panel with 1-1/4" Primary Loop

    Part No: EPP3-1.25

    $3687.88 each

    4 Zone Pump Electric Prefab Panel with 1-1/4" Primary Loop

    Part No: EPP4-1.25

    $3971.11 each

    5 Zone Pump Electric Prefab Panel with 1-1/4" Primary Loop

    Part No: EPP5-1.25

    $4341.42 each

    6 Zone Pump Electric Prefab Panel with 1-1/4" Primary Loop

    Part No: EPP6-1.25

    $4625.11 each

    7 Zone Pump Electric Prefab Panel with 1-1/4" Primary Loop

    Part No: EPP7-1.25

    $5044.26 each

    8 Zone Pump Electric Prefab Panel with 1-1/4" Primary Loop

    Part No: EPP8-1.25

    $5342.25 each

    ↓   Select Panel branch sizes for 1-¼" primary below (1 per pump)   ↓

    3/4" Secondary Loop Branch (for 1 1/4" Primary loop)

    Part No: EPP/125-Branch/34

    $168.75 each

    1" Secondary Loop Branch (for 1 1/4" Primary loop)

    Part No: EPP/125-Branch/1

    $241.59 each

    1 1/4" Secondary Loop Branch (for 1 1/4" Primary loop)

    Part No: EPP/125-Branch/125

    $314.99 each

    1 1/4" Alternate valve assembly on left side of panel for future heat pump or boiler. 2 valves supply, return on closely spaced T for injection boiler add on, related fittings needed.

    Part No: AV 1 1/4" x 2

    $398.80 each

    1 1/4" Alternate valve assembly on left side of panel for alternate heat pump or boiler. 3 valves supply, return and valve between T's, related fittings needed

    Part No: AV 1 1/4" x3

    $387.09 each

    Add 95-131F mixing valve and thermometer to panel. includes additional fittings required.

    Part No: Lo-3Way

    $163.93 each

    Add 104-176F mixing valve and thermometer to panel. includes additional fittings required.

    Part No: Hi-3Way

    $163.93 each
    ↓   System Upgrade Options   ↓

    Install Watts B9-11T Backflow Preventer on Panel (includes backflow preventer and all parts)

    Part No: BFP-UP

    $278.25 each

    Upgrade for Thermolec Tandem Boiler
    Secondary boiler mounts on auxiliary module panel to the right of the Primary boiler, connected with 18" flex lines

    Part No: TB-UP

    $616.37 each

    Heat exchange add on for additional heat source, works for wood boilers or water heaters. 2 12"x1" SS flex connectors, 1 Brazed 40 Plate Heat Ex-changer, 180,000 BTU and bracket mounted to pump panel.

    Part No: HX-WB-Add-On-1

    $1217.90 each
    ↓   Thermolec Column Pump Panel Adapter Module  ↓

    Electric Boiler Column Module
    1" primary loop to connect to RHT Column Pump Panel with 18" flex connectors
    select Thermolec boiler separately

    Part No: E-Column-Module

    $1087.43 each
    ↓   Circulator Pump Upgrade Options   ↓

    Upgrade from Grundfos UPSe Cast Iron Circulator to Taco 0018e SF4 Stainless Steel ECM Circulator
    (upgrade charge per pump)

    Part No: 0018eSF4UP

    $273.05 each

    Upgrade to Grundfos Magna 1 32-60 pump
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: MAGNA60UP

    $677.83 each

    Upgrade to Grundfos Magna 1 32-100 pump
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: MAGNA100UP

    $677.83 each

    Upgrade to Taco 0018e Infinitely Variable Speed Proportional Pressure high efficiency ECM pump
    (upgrade charge per pump)

    Part No: 0018eUP

    $125.45 each

    Upgrade to Taco Viridian VT2218 high efficiency ECM Delta T pump
    (upgrade charge per pump)

    Part No: VT2218UP

    $243.23 each

    Upgrade to Taco 0026e ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 0026eUP

    $514.77 each

    Upgrade to Taco 0034e ECM High-Efficiency Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 0034eUP

    $689.87 each

    Upgrade to Taco VR3452 ECM High-Efficiency Circulator (only available for Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: VR3452UP

    $537.78 each

    Upgrade to Taco 2400-50-3P Cast Iron Circulator
    (available only on Dominator and Titan panels)
    (upgrade charge per pump)

    Part No: 2400-50-UP

    $706.04 each
    ↓  Thermolec TMB Series Mini Boilers ASME Listed With H Stamp  ↓

    Thermolec 10,236 BTU, 3KW@240V/1 Electric Boiler with H stamp

    Part No: B-3TMB

    $1431.45 each

    Thermolec 20,472 BTU, 6KW@240V/1 Electric Boiler with H stamp

    Part No: B-6TMB

    $1481.60 each

    Thermolec 30,708 BTU, 9KW@240V/1 Electric Boiler with H stamp

    Part No: B-9TMB

    $1613.38 each

    Thermolec 37,532 BTU, 11KW@240V/1 Electric Boiler with H stamp

    Part No: B-11TMB

    $1774.72 each
    ↓  Thermolec FFB Series ASME Listed With H Stamp   ↓

    Thermolec 19,619 BTU, 5.75KW@240V/1 Electric Boiler with H stamp

    Part No: B-6U FFB (H)

    $1694.83 each

    Thermolec 27,296 BTU, 8KW@240V/1 Electric Boiler with H stamp

    Part No: B-8U FFB (H)

    $1910.43 each

    Thermolec 34,120 BTU, 10KW@240V/1 Electric Boiler with H stamp

    Part No: B-10U FFB (H)

    $1985.87 each

    Thermolec 39,238 BTU, 11.5KW@240V/1 Electric Boiler with H stamp

    Part No: B-12U FFB (H)

    $2295.00 each

    Thermolec 51,180 BTU, 15KW@240V/1 Electric Boiler with H stamp

    Part No: B-15U FFB (H)

    $2705.91 each

    Thermolec 61,416 BTU, 18KW@240V/1 Electric Boiler with H stamp

    Part No: B-18U FFB (H)

    $2902.61 each

    Thermolec 68,240 BTU, 20KW@240V/1 Electric Boiler with H stamp

    Part No: B-20U FFB (H)

    $3150.79 each

    Thermolec 78,476 BTU, 23KW@240V/1 Electric Boiler with H stamp

    Part No: B-23U FFB (H)

    $3461.30 each

    Thermolec 92,124 BTU, 27KW@240V/1 Electric Boiler with H stamp

    Part No: B-27U FFB (H)

    $4375.02 each

    Thermolec 102,360 BTU, 30KW@240V/1 Electric Boiler with H stamp

    Part No: B-30U FFB (H)

    $4653.48 each

    Thermolec 119,420 BTU, 35KW@240V/1 Electric Boiler with H stamp

    Part No: B-35U FFB (H)

    $4812.39 each

    Thermolec 136,480 BTU, 40KW@240V/1 Electric Boiler with H stamp

    Part No: B-40U FFB (H)

    $4859.12 each
    ↓  Thermolec FFB 3 Phase Series   ↓

    Thermolec 51,180 BTU, 15KW 3 phase Electric Boiler
    SPECIAL ORDER - Choice of 208, 240 or 480/3 voltage

    Part No: B-15U FFB-H 3 Phase

    $4809.63 each

    Thermolec 61,416 BTU, 18KW 3 phase Electric Boiler
    SPECIAL ORDER - Choice of 208, 240 or 480/3 voltage

    Part No: B-18U FFB-H 3 Phase

    $5189.30 each

    Thermolec 81,888 BTU, 24KW 3 phase Electric Boiler
    SPECIAL ORDER - Choice of 208, 240 or 480/3 voltage

    Part No: B-24U FFB-H 3 Phase

    $5287.43 each

    Thermolec 102,360 BTU, 30KW 3 phase Electric Boiler
    SPECIAL ORDER - Choice of 208, 240 or 480/3 voltage

    Part No: B-30U FFB-H 3 Phase

    $5537.79 each

    Thermolec 119,420 BTU, 35KW 3 phase Electric Boiler
    SPECIAL ORDER - Choice of 208, 240 or 480/3 voltage

    Part No: B-35U FFB-H 3 Phase

    $5979.41 each

    Thermolec 136,480 BTU, 40KW@480V/3PH Electric Boiler
    SPECIAL ORDER - 480V/3 phase only

    Part No: B-40U-FFB-480/3

    $6274.51 each
    ↓  Thermolec FFB-TB Tandem Boiler Pairs 240V Single Phase  ↓

    Thermolec Tandem Boiler FFB-TB-42-240/1 143,300 BTU/hr
    SPECIAL ORDER - 240V Single Phase

    Part No: FFB-TB-42-240/1

    $5453.19 each

    Thermolec Tandem Boiler FFB-TB-45-240/1 153,500 BTU/hr
    SPECIAL ORDER - 240V Single Phase

    Part No: FFB-TB-45-240/1

    $5453.19 each

    FFB-TB-48-240/1 163,800 BTU/hr
    SPECIAL ORDER - 240V Single Phase

    Part No: FFB-TB-48-240/1

    $6134.72 each

    FFB-TB-50-240/1 170,600 BTU/hr
    SPECIAL ORDER - 240V Single Phase

    Part No: FFB-TB-50-240/1

    $6134.72 each
    ↓  Thermolec FFB-TB Tandem Boiler Pairs 208V Three Phase  ↓

    FFB-TB-42-208/3 143,300 BTU/hr
    SPECIAL ORDER - 208V Three Phase

    Part No: FFB-TB-42-208/3

    $6397.22 each

    FFB-TB-45-208/3 153,500 BTU/hr
    SPECIAL ORDER - 208V Three Phase

    Part No: FFB-TB-45-208/3

    $6397.22 each

    FFB-TB-47-208/3 160,400 BTU/hr
    SPECIAL ORDER - 208V Three Phase

    Part No: FFB-TB-47-208/3

    $7123.47 each

    FFB-TB-50-208/3 170,600 BTU/hr
    SPECIAL ORDER - 208V Three Phase

    Part No: FFB-TB-50-208/3

    $7123.47 each
    ↓  Thermolec FFB-TB Tandem Boiler Pairs 240V Three Phase  ↓

    FFB-TB-42-240/3 143,300 BTU/hr
    SPECIAL ORDER - 240V Three Phase

    Part No: FFB-TB-42-240/3

    $6397.22 each

    FFB-TB-44-240/3 150,100 BTU/hr
    SPECIAL ORDER - 240V Three Phase

    Part No: FFB-TB-44-240/3

    $6397.22 each

    FFB-TB-47-240/3 160,400 BTU/hr
    SPECIAL ORDER - 240V Three Phase

    Part No: FFB-TB-47-240/3

    $7123.47 each

    FFB-TB-50-240/3 170,600 BTU/hr
    SPECIAL ORDER - 240V Three Phase

    Part No: FFB-TB-50-240/3

    $7123.47 each

    FFB-TB-53-240/3 180,800 BTU/hr
    SPECIAL ORDER - 240V Three Phase

    Part No: FFB-TB-53-240/3

    $7123.47 each
    ↓  Thermolec FFB-TB Tandem Boiler Pairs 480V Three Phase  ↓

    FFB-TB-42-480/3 143,300 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-42-480/3

    $6397.22 each

    FFB-TB-45-480/3 153,500 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-45-480/3

    $6397.22 each

    FFB-TB-50-480/3 170,600 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-50-480/3

    $6397.22 each

    FFB-TB-52-480/3 177,400 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-52-480/3

    $7197.36 each

    FFB-TB-55-480/3 187,700 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-55-480/3

    $7197.36 each

    FFB-TB-58-480/3 197,900 BTU/hr
    SPECIAL ORDER - 480V Three Phase

    Part No: FFB-TB-58-480/3

    $7197.36 each
    ↓   RHT Glycol Fill Unit   ↓

    RHT Hydronic Fill & Purge System / Glycol Fill Unit
    RHTHydronicFill_PurgeSystem.pdf

    Part No: RHT Glycol Pump

    $510.01 each
    $1938.04 (4 x $484.51)

    VERSIJET MPU 115V S/E 3.5C SW20 5.0 GPM PC

    Part No: 08500500A

    $310.18 each

    Easy Connection Kit for RHT Hydronic Fill & Purge System
    Includes:

    • ½" RHT Push-fit Ball Valve
    • ½" SharkBite elbow
    • ½" SharkBite x ¾" FNPT Reducing Connector

      Part No: FILL-CONNECT-KIT

    $49.10 each

    Site Links

    Contact

    Toll Free: (866) 361-4782

    Fax: 206-274-1501

    17420 Vashon Hwy SW
    PO Box 2270
    Vashon, WA 98070

    Copyright © 2024 BlueRidgeCompany.com All rights reserved.
