RHT Prefab Column Panels

The only Radiant Heating Solution that ships standard with ECM pressure proportional pumps

RHT boiler panels are professionally manufactured, pre-assembled, hydronic heating systems. RHT Boiler Panels are an excellent value & time-saver, simplifying your radiant heat installation with a clean custom solution. As the name suggests the RHT Column panel is designed for minimal building foot print a simple stack 30"x 8' will house both the pump panel and most wall mounted boilers. On-site work will be minimized to: 1) connecting your supply and return lines to manifolds, 2) electrical wiring and 3) providing make-up water supply.

RHT Column Panels are designed to work with any wall mounted condensing boiler that has a built in primary loop pump.

Features:

  • Primary/Secondary loop system
  • Choice of two, three, or four secondary loops with Grundfos zone valves
  • Taco switching relay sized for pump system specified
  • Watts expansion tank
  • Everything securely mounted to an aluminum panel 24"x 36" sized to fit on wall directly beneath boiler.

Panel and boiler sold separately. First select the panel containing the number of zone valves desired, then select the appropriate boiler to complete the panel. BlueRidge Company technicians will be pleased to assist with pump sizing and system design.

Documentation: RHTColumnZVPanel.pdf


Part No. Qty Unit Price
RHT-ZVC2-3/4 2 Zone Prefabricated Boiler Panel - 3/4" zone supply/return outlets
With Grundfos Alpha pump and Grundfos Zone Valves
$1755.97
RHT-ZVC3-3/4 3 Zone Prefabricated Boiler Panel - 3/4" zone supply/return outlets
With Grundfos Alpha pump and Grundfos Zone Valve
$1889.54
RHT-ZVC4-3/4 4 Zone Prefabricated Boiler Panel - 3/4" zone supply/return outlets
With Grundfos Alpha pump and Grundfos Zone Valve
$2147.87

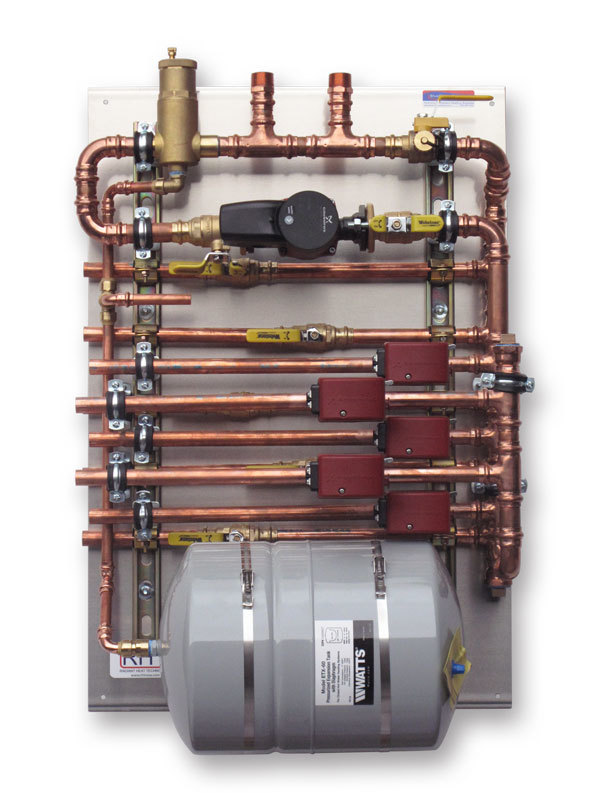

RHT-ZVC5-3/4 5 Zone Prefabricated Boiler Panel - 3/4" zone supply/return outlets
With Grundfos Alpha pump and Grundfos Zone Valves
$2567.00
↓   Additional Options  ↓
Stainless UP Upgrade to stainless steel Grundfos Alpha pump
(upgrade charge per panel - there is only one grundfoss alpha pump on a zone valve panel.)
$106.20
BFP-UP Install Watts B9-11T Backflow Preventer on Panel (includes backflow preventer and all parts) $198.77
HEAT-EX-UP Add RHT flat plate heat ex-changer 200,000BTU to the Pump System $549.52
