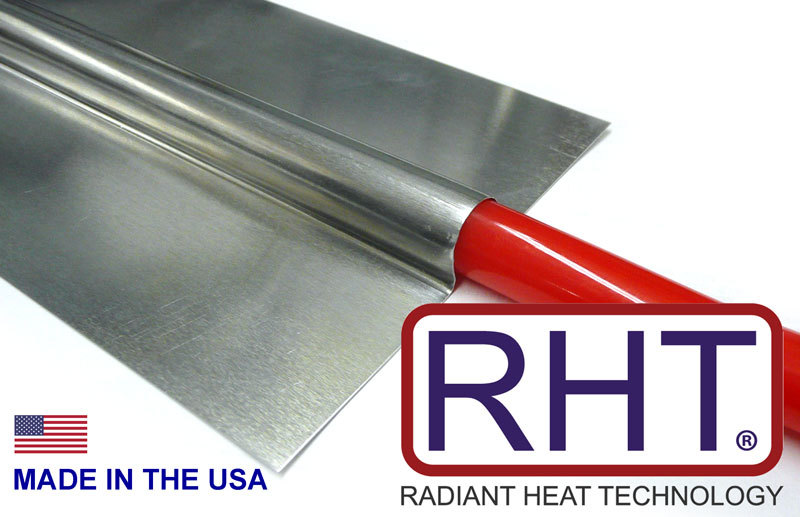

RHT OMEGA Heat Transfer Plates

An efficient method to distribute radiant heat from PEX tubing.
RHT OMEGA Heat Transfer Plates offer an efficient method of distributing radiant heat from PEX tubing. Made in America from a mill finish aluminum. The channel is a wrap around omega shape (Ω) for a snug fit that holds the tubing in place very effectively in above floor systems such as the RHT Floor Panel System.

Features:

  • Available for 3/8" or 1/2" PEX tubing.
  • Single channel plates 5" width .019" thickness
  • Double channel plates 12.5" width .024" thickness
  • 24" or 48" lengths
Custom lengths and packaging are available.






Documentation: RHTStapleUpInstallation.pdf


Unit Purchase Bulk Purchase
Part No. Qty Unit Price Qty Bulk Price
↓ Heat Transfer Plates ↓
38U24 ⅜"x24"x5" RHT OMEGA Heat Transfer Plates single 'U' style .019" thickness
100 per box
FREE SHIPPING (*Continental US)
$159.65 $1515.05
(10 x $151.50)
12U24-50 ½"x24"x5" RHT OMEGA Heat Transfer Plates single 'U' style .019" thickness
50 per box
FREE SHIPPING (*Continental US)
$109.72
12U24-100 ½"x24"x5" RHT OMEGA Heat Transfer Plates single 'U' style .019" thickness
100 per box
FREE SHIPPING (*Continental US)
$170.18 $1644.54
(10 x $164.45)
12UU24 ½"x24"x12½" RHT OMEGA Heat Transfer Plates double 'UU' style .024" thickness
50 per box
FREE SHIPPING (*Continental US)
$209.05 $2030.20
(10 x $203.02)
12U48 ½"x48"x5" RHT OMEGA Heat Transfer Plates single 'U' style .019" thickness
50 per box
FREE SHIPPING (*Continental US)
$174.68 $1670.80
(10 x $167.08)
12UU48 ½"x48"x15½" RHT OMEGA Heat Transfer Plates double 'UU' style .024" thickness
A great option with RHT Floor Panels resulting in only a ½" gap for nearly continuous coverage
Special Order Only
↓ RHT 3/4" Plywood Floor Panel System ↓
11FHP12 RHT Floor Panel System
8" x 4' x 3/4" Plywood Panel
11 pieces per bundle/33 turns total
FREE SHIPPING (*Continental US)
$205.92
4FHP12 RHT Floor Panel System
8" x 4' x 3/4" Plywood Panel
4 pieces per bundle/12 turns total
FREE SHIPPING (*Continental US)
$89.89
↓ RHT 1" Foam Floor Panel System ↓
EC1048 End Cap for RHT Foam floor panel system.
6 pieces per bundle/18 turns total =20 sq.ft.
$128.60
TF48 48"x48" Foam panels for RHT Foam floor panel system.
8 pieces per bundle=128 sq.ft.. 6 12 UU24 plates needed per 48"x48" panel. Our 1.5 LB foam product offers R5 insulation value per inch. Under pipe .25 inch approximately R 1.25.
