ESP Small Duct Heating & Cooling Systems

A Complete Home Comfort System

Featuring an innovative fan coil and unique heating and cooling technologies, the Hi-Velocity System helps create a healthier and more enjoyable indoor living environment, while saving money on monthly utility bills. With a pressurized small diameter duct, the Hi-Velocity SDHV (Small Duct High Velocity) system conditions the air differently than conventional forced air systems. Pressure is created in the smaller supply ducts and converted to velocity at the outlets, utilizing the Venturi Effect.

  • Heating, cooling & indoor air quality all in one system.
  • Creates a draft-free environment with no hot and cold spots.
  • 2" flexible ducts can be installed quickly and easily along joists, in between walls, or in other confined areas.
  • Ideal for single family or commercial retrofits and new construction.
  • Outlets not limited to outside walls or floors.
  • Boilers, dual purpose hot water heaters, heat pumps, and geothermal systems can all be used as heat sources.
  • Dust and other airborne allergens easily filtered out.
Electronic parts are not returnable. Please check to make sure you have chosen the correct part. Due to Energy Savings inconstant stock at their USA Warehouse locations Freight charges will be added on items shipping from Canada

Documentation: ESP_Hi-Velocity Systems Explained.pdf


Part No. Qty Unit Price

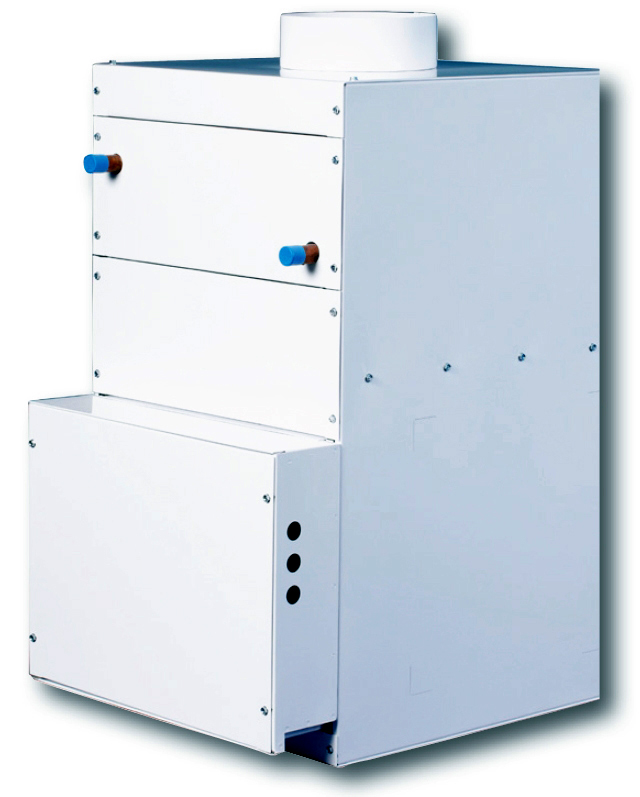

↓ High-Velocity HE-Z Fan Coil Units w/ 110v WEG Zoning Controls ↓
41011400050 HE-Z-50 H-110v Heating Unit w/VFD Motor & 1/2 HP 110v WEG
ESP_HE-Z Brochure.pdf
$1712.34
41011400070 HE-Z-70 H-110v Heating Unit w/VFD Motor & 1/2 HP 110v WEG
ESP_HE-Z Brochure.pdf
$1813.14
41011400100 HE-Z-100 H-110v Heating Unit w/VFD Motor & 1 HP 110v WEG
ESP_HE-Z Brochure.pdf
$2016.63
↓ High-Velocity HE-Z Builder series Fan Coil Units w/ 110v WEG Zoning Controls ↓
HE-Z-50 BU HE-Z-50 BU 110v Builder series fan unit $1584.28
HE-Z-70 BU HE-Z-70 BU 110v Builder series fan unit $1587.51
HE-Z-100 BU HE-Z-100 BU 110v Builder series fan unit $1736.75
↓ Parts ↓
40120100004 Control Board: HE ZED electric box w/ 110v WEG Controller $904.57
↓ Lo-Velocity LV-Z Fan Coil Units ↓
41011401050 LV-Z-1050 H-110v Heating Unit w/VFD Motor & 1/3 HP 110v WEG
FREE SHIPPING (*Continental US)

ESP_LV-Z Brochure.pdf
$1805.58
41011401750 LV-Z-1750 H-110v Heating Unit w/VFD Motor & 1 HP 110v WEG
FREE SHIPPING (*Continental US)

ESP_LV-Z Brochure.pdf
$2112.39
LV-Z-1050 B LV-Z-1050 B-110v Blower Unit w/VFD Motor & 1/3 HP 110v WEG $1426.95
↓ RPM-E Pre-Piped Cooling Modules w/ R-410A TXV ↓
20090200050 RPM-E-50 Pre-Piped TX Cooling Module for HE-Z/HE/HV-50, LV-50
ESP_RPM-E.pdf
$670.95
20090200070 RPM-E-70 Pre-Piped TX Cooling Module for HE-Z/HE/HV-70, LV-70
ESP_RPM-E.pdf
$853.02
20090200100 RPM-E-100 Pre-Piped TX Cooling Module for HE-Z/HE/HV-100
ESP_RPM-E.pdf
$960.75
↓ Water Coil Modules ↓
10010201050 WCM-50 Water Coil Module for HE-Z/HE/HV-50, LV-50
Call for Freight Quote

ESP_Water Coils.pdf
$469.98
10010201070 WCM-70/1050 Water Coil Module for HE-Z/HE/HV-70, LV-70, LV-E/LV-Z-1050
Call for Freight Quote

ESP_Water Coils.pdf
$515.97
40090100100 WCM-100 Water Coil Module for HE-Z/HE/HV-70, LV-70,LV-E/Z/1050
Call for Freight Quote
$742.01
20090101750 WM-1750 water coil Call for Freight Quote
$972.85
↓ 2" Flexible Duct ↓
20020120010 2"x10' Assembled 2" Flex Duct R4.2; 4 per box (includes 2 attached branch couplers, 1 branch take-off w/ gasket assembly, 1 rough-in kit, 1 rough-in cap & 1 plastic vent plate)
ESP_Flexible Duct Brochure.pdf
$238.09
20020120015 2"x15' Assembled 2" Flex Duct R4.2; 4 per box (includes 2 attached branch couplers, 1 branch take-off w/ gasket assembly, 1 rough-in kit, 1 rough-in cap & 1 plastic vent plate)
ESP_Flexible Duct Brochure.pdf
$267.86
20020120025 2"x25' Unassembled 2" Flex Duct R4.2; 1 per box (includes 3 branch connector tubes, 6 branch couplers and 6 tie wraps)
ESP_Flexible Duct Brochure.pdf
$117.20
20022120010 2"x10' Assembled 2" Flex Duct R8.4; 2 per box (includes 2 attached branch couplers, 1 branch take-off w/ gasket assembly, 1 rough-in kit, 1 rough-in cap & 1 plastic vent plate)
ESP_Flexible Duct Brochure.pdf
$154.87
20022120015 2"x15' Assembled 2" Flex Duct R8.4; 2 per box (includes 2 attached branch couplers, 1 branch take-off w/ gasket assembly, 1 rough-in kit, 1 rough-in cap & 1 plastic vent plate)
ESP_Flexible Duct Brochure.pdf
$174.91
20022120025 2"x25' Unassembled 2" Flex Duct R8.4; 1 per box (includes 3 branch connector tubes, 6 branch couplers and 6 tie wraps)
ESP_Flexible Duct Brochure.pdf
$134.21
↓ HE Flexible Duct ↓
(One 10' HE Flexible Duct equals two 10' 2" Flexible Ducts)
20062010010 HE 10' Assembled Flex Duct R4.2; 2 per box (includes 2 attached branch couplers, 1 branch take-off w/ gasket assembly, 1 rough-in kit, 1 rough-in cap & 1 plastic vent plate)
ESP_Flexible Duct Brochure.pdf
$184.03
20062010015 HE 15' Assembled Flex Duct R4.2; 2 per box (includes 2 attached branch couplers, 1 branch take-off w/ gasket assembly, 1 rough-in kit, 1 rough-in cap & 1 plastic vent plate)
ESP_Flexible Duct Brochure.pdf
$206.50
20062010025 HE 25' Unassembled Flex Duct R4.2; 1 per box (includes 3 branch connector tubes, 6 branch couplers and 6 tie wraps)
ESP_Flexible Duct Brochure.pdf
$165.80
20062030010 HE 10' Assembled Flex Duct R8.4; 1 per box (includes 2 attached branch couplers, 1 branch take-off w/ gasket assembly, 1 rough-in kit, 1 rough-in cap & 1 plastic vent plate)
ESP_Flexible Duct Brochure.pdf
$121.45
20062030015 HE 15' Assembled Flex Duct R8.4; 1 per box (includes 2 attached branch couplers, 1 branch take-off w/ gasket assembly, 1 rough-in kit, 1 rough-in cap & 1 plastic vent plate)
ESP_Flexible Duct Brochure.pdf
$136.03
20062030025 HE 25' Unassembled Flex Duct R8.4; 1 per box (includes 3 branch connector tubes, 6 branch couplers and 6 tie wraps)
ESP_Flexible Duct Brochure.pdf
$191.32
30020100004 2" Branch Connector Tube (8) Branch Connector Tube (2" - 8 per package) $22.85
40072030012 HE Branch Connector Tube (4) Branch Connector Tube (HE - 4 per package) $22.85
↓ HE PS High-Velocity Air Purification System ↓
20180100000 HE PS w/ MERV 13 Filter
FREE SHIPPING (*Continental US)

ESP_Air Purification Brochure.pdf
$761.67
20180100007 HE PS 1 Year Service Kit (2 MERV 13 filters & 2 UV Lamps) See our Sun Pure parts 1RK023 & 1RK022
HE-Z-50-Z2 2 Zone Add-on (2x8" Collars) for HE-Z-50 $547.00
HE-Z-50-Z3 3 Zone Add-on (2x8" Collars 1x6" Collar) for HE-Z-50 $820.80
HE-Z-50-Z4 4 Zone Add-on (4x6" Collars) for HE-Z-50 $1094.40
HE-Z-70-Z2 2 Zone Add-on (2x8" Collars) for HE-Z-70 $547.00
HE-Z-70-Z3 3 Zone Add-on (2x8" Collars 1x6" Collar) for HE-Z-70 $820.80
HE-Z-70-Z4 4 Zone Add-on (4x6" Collars) for HE-Z-70 $1094.40
HE-Z-100-Z2 2 Zone Add-on (2x10" Collars) for HE-Z-100 $547.00
HE-Z-100-Z3 3 Zone Add-on (3x8" Collars) for HE-Z-100 $820.80
HE-Z-100-Z4 4 Zone Add-on (4x8" Collars) for HE-Z-100 $1094.40
40180400005 5 Ton heat pump 410 A 5 Ton Inverter Drive Condenser w/Interface Panel (17kw) Freight charges will be added $5625.00
10090203100 RCM-I-100 TX Cooling Module - Cased Coil only - no accessories, for use w/ 5 Ton Inverter $740.61
