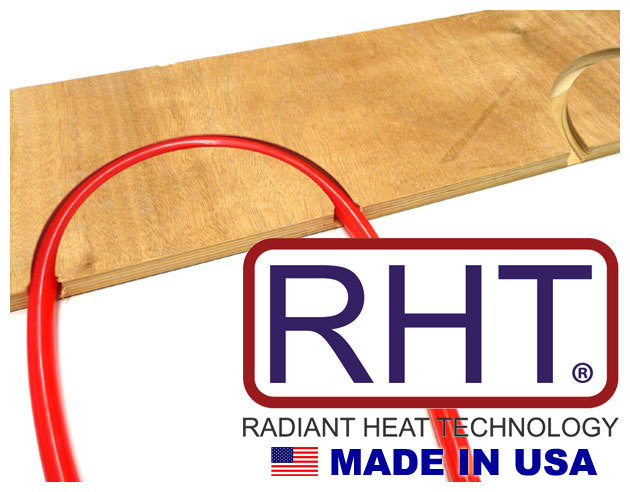

RHT Floor Panel System
Keeps Sandwich Style Radiant Floor Installations On Track

The RHT floor panel system provides an easy, fast, and effective way to attach, guide, and install your PEX tubing effectively and cleanly. This system is designed to be used with ½" RHT PEX tubing. It features specially machined 180° turns, making installation a breeze. The RHT Floor Panel System also comes with custom heat transfer plates, which help secure the PEX tubing in their omega shaped (Ω) channels while allowing for a more efficient energy transfer, ensuring a more efficient and cost effective heating experience.

Features:
  • 3/4" specialized plywood routed with 180° U-turns
  • For use with RHT or other 1/2" PEX tubing
  • 8" on center tube spacing, 3 turns per panel
  • Infill is customer-provided 3/4" plywood rips
  • Panels can be cut to provide multiple angles
  • Use with RHT Heat transfer plates for maximum efficiency
Click here to see a step by step installation.

Free Shipping in lower 48 states on RHT Floor Panels

Documentation: RHT_Floor Panels.pdf


Unit Purchase Bulk Purchase
Part No. Qty Unit Price Qty Bulk Price
↓ Floor Panel System ↓
11FHP12 RHT Floor Panel System
8" x 4' x 3/4" Plywood Panel
11 pieces per bundle/33 turns total
FREE SHIPPING (*Continental US)
$205.92
4FHP12 RHT Floor Panel System
8" x 4' x 3/4" Plywood Panel
4 pieces per bundle/12 turns total
FREE SHIPPING (*Continental US)
$89.89
↓ Heat Transfer Plates ↓
38U24 3/8"x24"x5" RHT OMEGA Heat Transfer Plates single 'U' style .019" thickness
100 per box
FREE SHIPPING (*Continental US)
$143.57 $1375.86
(10 x $137.59)
12U24-50 1/2"x24"x5" RHT OMEGA Heat Transfer Plates single 'U' style .019" thickness
50 per box
FREE SHIPPING (*Continental US)
$94.89
12U24-100 1/2"x24"x5" RHT OMEGA Heat Transfer Plates single 'U' style .019" thickness
100 per box
FREE SHIPPING (*Continental US)
$142.40 $1376.09
(10 x $137.61)
12U24-x4 1/2"x24"x5" RHT OMEGA Heat Transfer Plates single 'U' style .019" thickness
4 boxes of 100 each
FREE SHIPPING (*Continental US)
$560.01
(4 x $140.00)
12UU24 1/2"x24"x12.5" RHT OMEGA Heat Transfer Plates double 'UU' style .024" thickness
50 per box
FREE SHIPPING (*Continental US)
$184.66 $1793.36
(10 x $179.34)
12UU24-x4 1/2"x24"x12.5" RHT OMEGA Heat Transfer Plates double 'UU' style .024" thickness
4 boxes of 50 each
FREE SHIPPING (*Continental US)
$729.50
(4 x $182.38)
12U48 1/2"x48"x5" RHT OMEGA Heat Transfer Plates single 'U' style .019" thickness
50 per box
FREE SHIPPING (*Continental US)
$148.79 $1423.18
(10 x $142.32)
RHT 15.5x3 RHT 15.5"x3' double Chanel 8" pattern Special order only
RHT 15.5x4 RHT 15.5"x4' double Chanel 8" pattern Special order only
RHT 15.5x6 RHT 15.5"x6' double Chanel 8" pattern Special order only
RHT 15.5x8 RHT 15.5"x8' double Chanel 8" pattern Special order only
38u48C50 Custom Copper Bulk order only ½” OD pipe .017 nom copper 110 half hard Cartons 50/pc per carton Length 48” Formed Width 5” Nominal Manufacturing. Lead time 5-6 weeks. Metal prices subject to change without notice. $1031.50
38u48C25 Custom Copper Bulk order only ½” OD pipe .017 nom copper 110 half hard Cartons 25/pc per carton Length 48” Formed Width 5” Nominal Manufacturing. Lead time 5-6 weeks. Metal prices subject to change without notice $515.75
